Unbranded

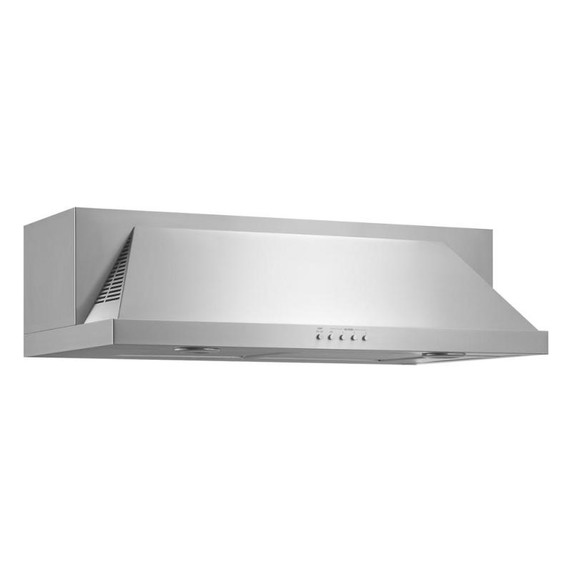

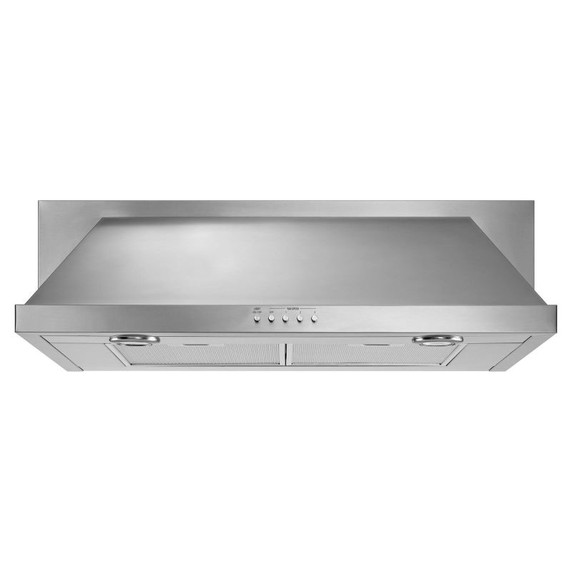

Convertible Under-Cabinet Hood, 30" UXT5530AAS
Controls
Control TypeManual
Control LocationFront
Electrical
Volts120
Hz60
Amps15
Specifications
Country Of OriginMexico
Extended Service Plan ParentEW02IW2Y, EW02IW1Y, EW02IW4Y
Optional AccessoriesW10446914, W10272068
Product To Product PairsYMET8800FZ, YWEE745H0LZ, YWEE515S0LB, MGC7430DS, YWEE515S0LV, YWFE745H0FS, WCE97US0KS, WCE77US0HB, WGG745S0FS, WCE77US0HS, YWEE750H0HB, WEG515S0LV, YWGE745C0FS, WCI55US0JB, WEG515S0LS, WCI55US0JS, WEG750H0HB, YWFC150M0JB, YWEE750H0HV, WCE55US0HB, MGT8800FZ, YWEE750H0HW, WEG750H0HW, YWEEA25H0HZ, YWEE750H0HZ, WEGA25H0HZ, MEC8830HS, YWEE515S0LS, YWFC315S0JS, YWFE515S0JS, WEG750H0HV, YWFC315S0JW, WCE97US0KB, YWFC150M0JW, WEG750H0HZ, WCE55US0HS, YWFE745H0FH, MEC8830HB, YWEE515S0LW
Features
Task LightingYes
Task Light TypeHalogen
Btu Threshold60 K
Certifications
ULYes
Description
Size In30
Ventilation System
Duct DirectionVertical
VentingExterior or Recirculating
Duct Outlet Size In3.25 W x 10 H
Duct TypeRectangular
Cfm Motor Class400
FiltersCharcoal Odor Removing Filter; Grease Filters
Sound Max Speed Sones8.2
Carton Depth14.0"
Carton Height25.0"
Carton Width34.0"

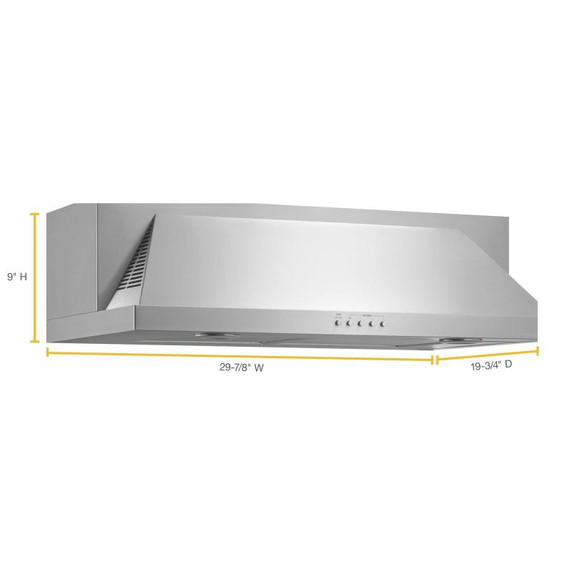

Depth19.75"
Gross Weight37.7 lbs.
Height9.0"
Width29.88"
