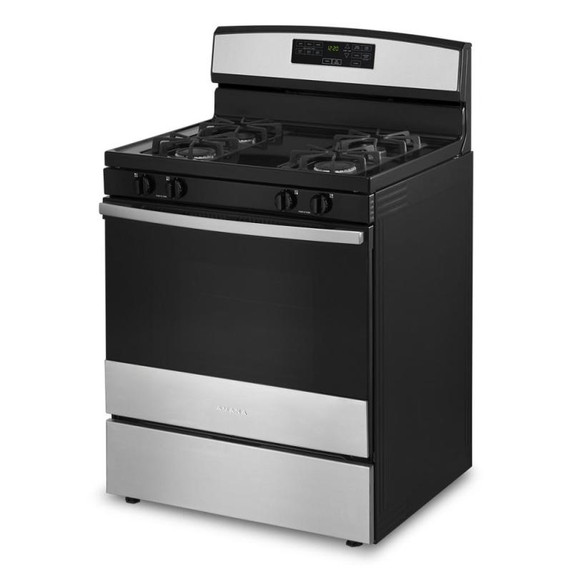

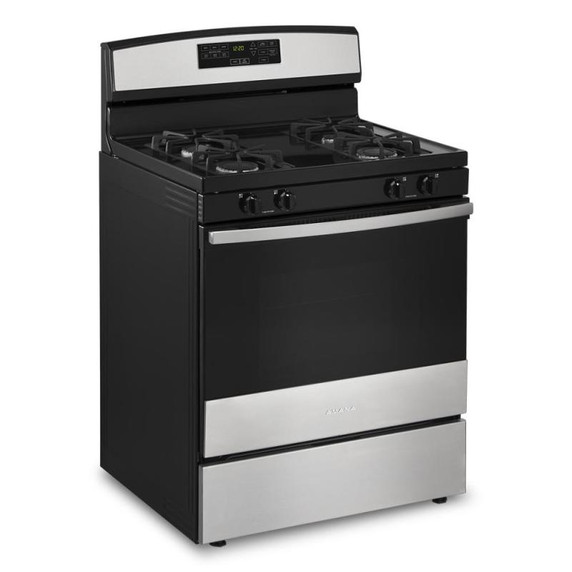

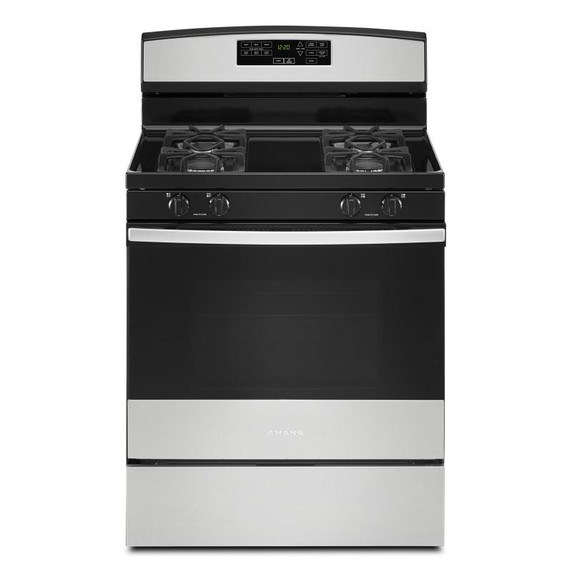

Amana® 30-inch Gas Range with Self-Clean Option AGR6603SMS

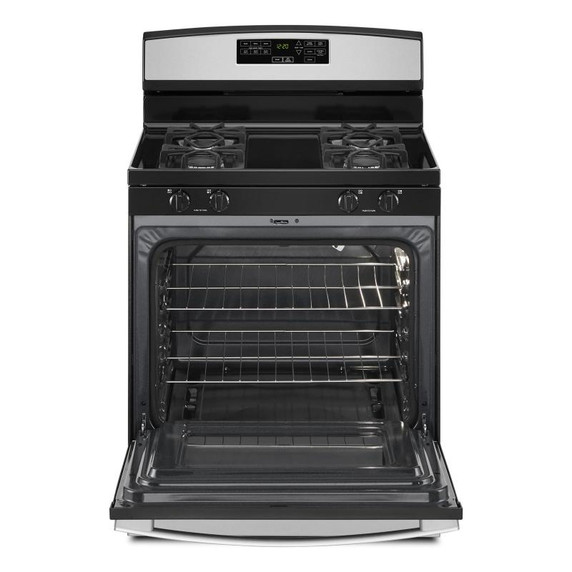

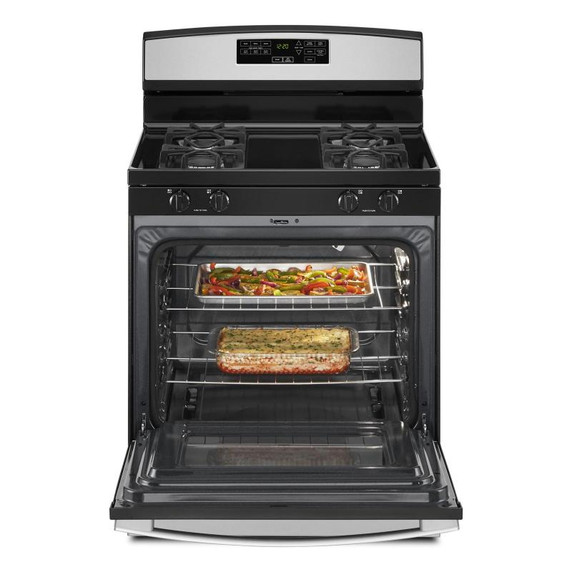

Large Oven CapacityLarge Oven Capacity gives you the space you need to make dinner and dessert at the same time.

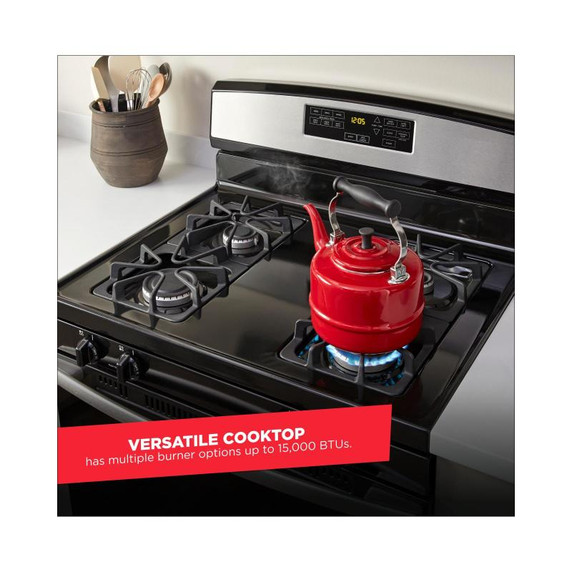

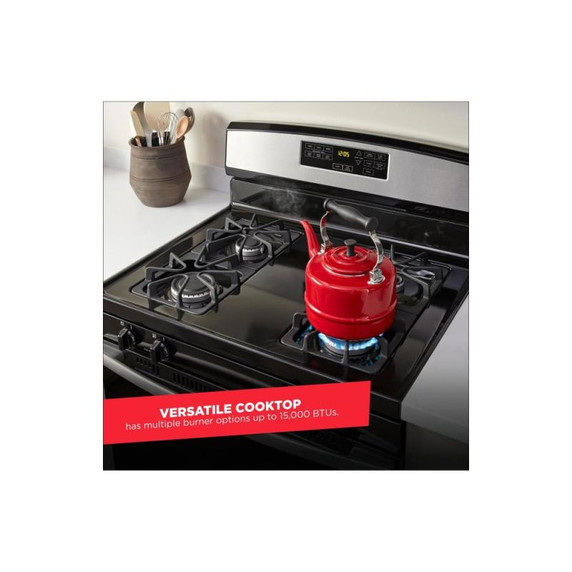

Versatile CooktopOur Versatile Cooktop features multiple burner options that provide up to 15,000 BTUs, helping you cook your favorites all at once.

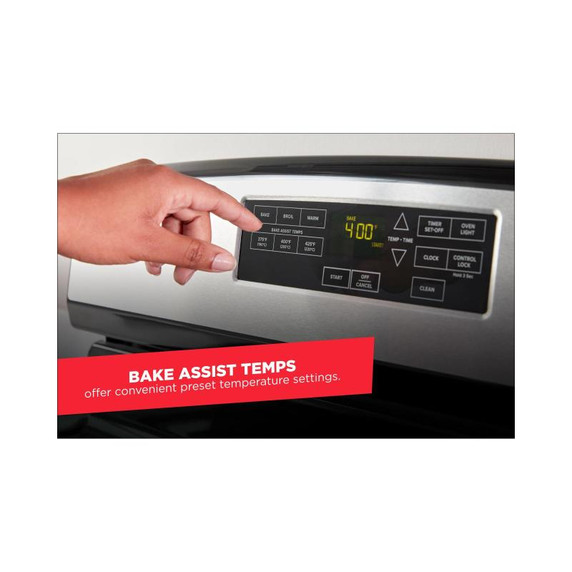

Bake Assist TempsBake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

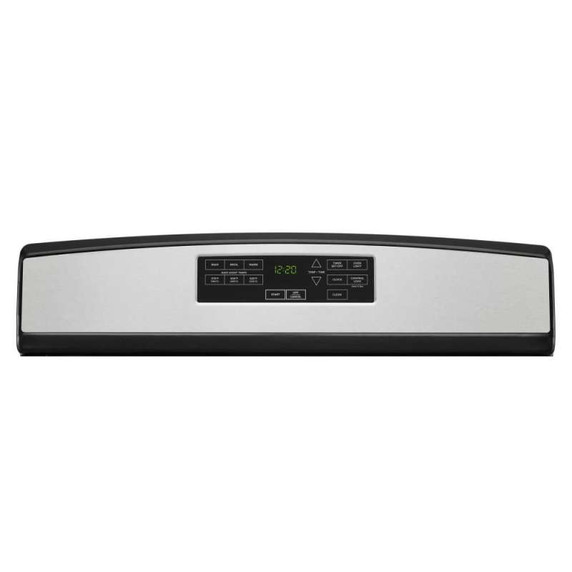

Easy Touch Electronic Controls PlusQuickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
Temp Assure™ Cooking SystemTemp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Extra-Large Oven WindowSee and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
Warm HoldCan't serve dinner right away? Warm Hold keeps the oven at 145ºF to 190ºF, so dishes like your baked chicken Parmesan are still ready when you are.
EasyAccess™ Broiler DoorThe EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.
Custom BroilUse the Custom Broil setting to broil in five-degree increments.
SpillSaver™ Upswept CooktopThe SpillSaver™ Upswept Cooktop comes with raised edges to make cleanup a cinch.
Oven LockoutOven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Self-Clean OptionThere's no need to scrape and scrub with the Self-Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.

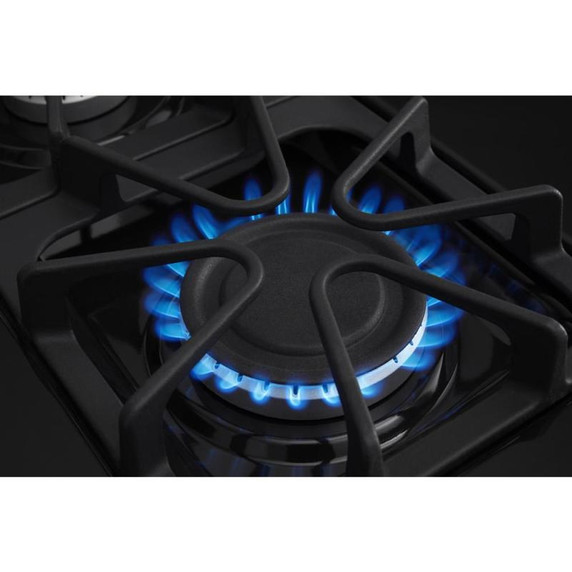

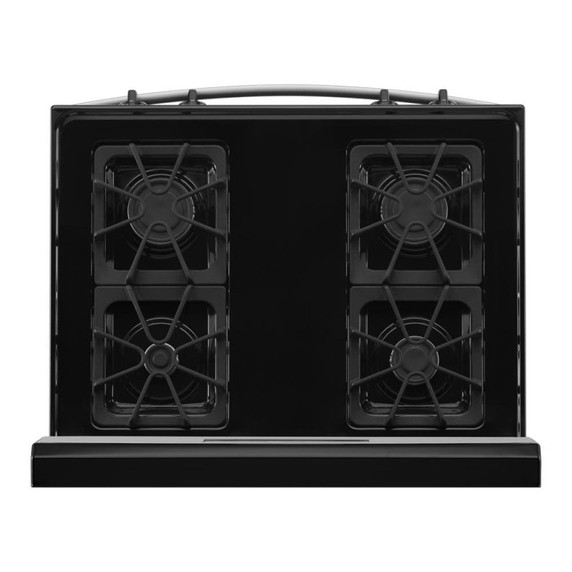

Sealed BurnersDon't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.
Controls

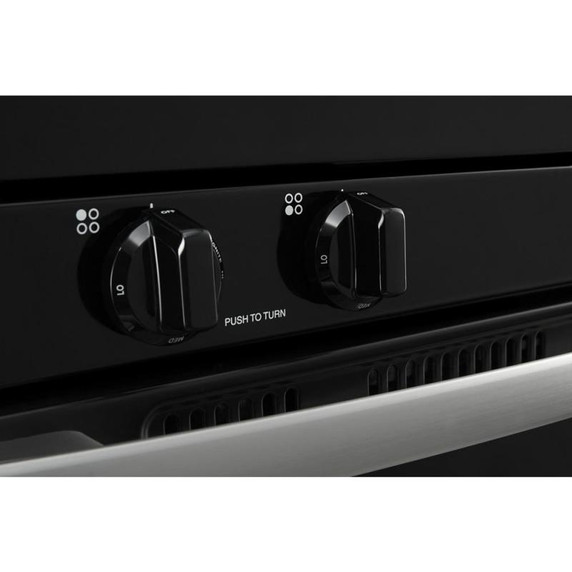

Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Configuration and Overview
Fuel TypeGas
Compatibility
Works With
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishSatin Finish
Extended Service Plan Parent
Product To Product Pairs
Optional Accessories4396096RB, W10252111
Cast Iron Vs PorecelainDishwasher Safe; Flower Wire; Gloss Finish; Wire Grates
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
GriddleN/A
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Total Gas Btus Oven S16,500
Total Gas Btus Cooktop54,500
Certifications
ULYes
ADA CompliantNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Handle MaterialPlastic
Handle ColorBlack
Handle TypeReach-Through Handle
Description
Size In30
Range TypeFreestanding
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Number Of Rack Guides5
Number Of Oven Lights1
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Bake Element Power16500BTU
Oven Control Knob ColorBlack
Broiler Element Power16500BTU
Convection FunctionsNo
Cooktop Details
Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeStandard
Right Front Element Burner TypeStandard
Auto Re IgnitionNo
Number Of Grates2
Right Rear Element Burner Power5000BTU
Left Rear Element Burner Power9500BTU
Right Front Element Burner Power9500BTU
Left Front Element Burner Power11500BTU
Ignition TypeÉlectroniques
Grate DetailsDishwasher Safe; Flower Wire; Gloss Finish; Wire Grates
Carton Depth30.0"
Carton Height49.0"
Carton Width32.0"

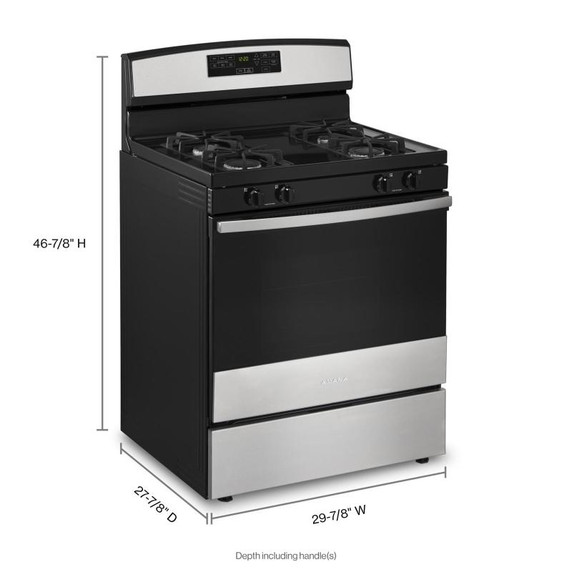

Depth Closed Excluding Handles22.9"
Depth Closed Including Handles25.55"
Depth With Door Open 90 Degree45.78"
Depth27.2"
Gross Weight179.0 lbs.
Height46.25"
Maximum Height37.0"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)5.0
