Hover on image to zoom

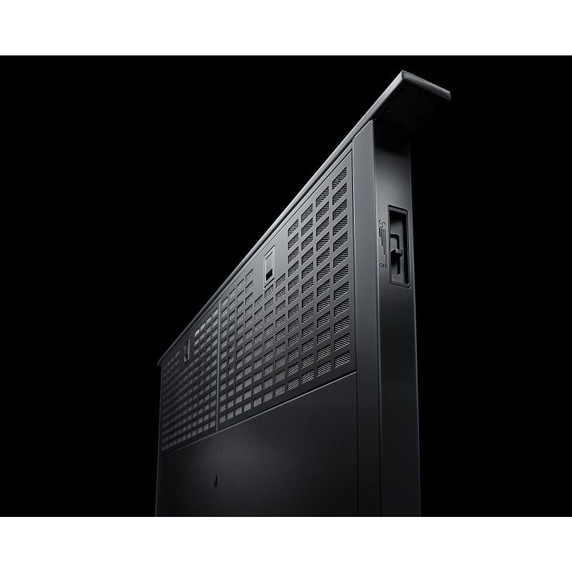

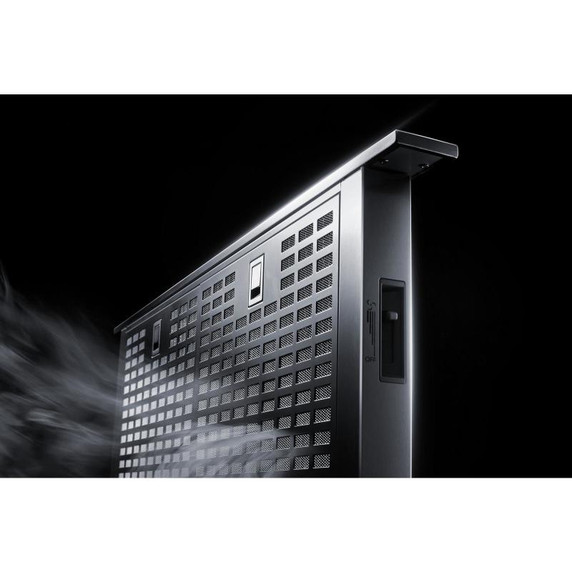

Jennair® Telescoping Downdraft Ventilation, 30" JXD7030YS

SKU: JXD7030YS

JennAir Luxury Redefined Event, November 1 - December 31, 2024. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 or more qualifying JennAir® products!

$2,199.99
Available on: November 8th, 2024*
Print:
Energy Star Logo
Colour: Stainless Steel
Volts: 120
Hz: 60
Amps: 15
Control Location: Hidden
Control Type: Manual
Venting: Exterior
Hood Type: Retractable Downdraft

This Jenn-Air® luxury telescoping downdraft ventilation offers minimal design and powerful performance right at the cooking surface. Designed to work with smaller cooking appliances, the sleek telescoping downdraft vent appears at the touch of a button, an
Features
Top 3 Features

600 CFM High-Performance BlowerA single centrifugal blower motor design allows the ventilation system to operate at up to 600 CFM to quickly remove smoke, steam and cooking odors.

14-Inch (35.6cm) RiseVent rises a full 14 inches (35.6cm), so it's far enough above the cooktop to capture steam from tall stockpots and other cookware.

Reversible Motor BoxDesigned for flexibility, the reversible motor box can be positioned to face the front or back of cabinets to accommodate more installation options.

Additional Features

Four Fan Speed SettingsFour different settings on this luxury telescoping downdraft ventilation allow you to control the ventilation level for optimum performance and energy efficiency.

Dishwasher-Safe Premium Mesh FiltersThese aluminum mesh filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.

6-Inch Round Exterior VentingThe 6-inch round exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.

3 1⁄4" x 10" Rectangular Exterior VentingThe 3 1⁄4" x 10" rectangular exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.

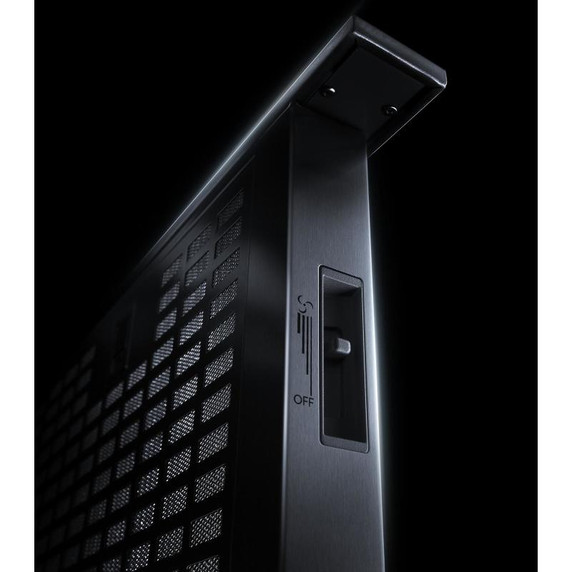

Hidden Slide ControlsThis luxury telescoping downdraft ventilation achieves its sleek appearance with controls that are hidden from sight.

Automatic Shutoff When RetractedThis feature provides peace of mind by ensuring that the blower will always be turned off once the hood has been lowered into the countertop.

Integrated StylingThis luxury telescoping downdraft ventilation, which integrates into countertops and islands, allows you achieve a streamlined look.

Slim ProfileThe telescoping downdraft ventilation’s slim profile takes up minimal space on a countertop or island.

Specifications

Electrical

Volts120

Hz60

Amps15

Certifications

ULYes

Energy Star QualifiedYes

Description

Size In30

Hood TypeRetractable Downdraft

Specifications

Country Of OriginMexico

Product To Product Pairs

Extended Service Plan ParentEW07IW4Y, EW07IW2Y, EW07IW1Y

Optional AccessoriesW10446914, W10446915, W10387676

Ventilation System

Duct DirectionVertical

Duct TypeRound

FiltersGrease Filters

Cfm Motor Class600

Duct Outlet Size In3.25 W x 10 H

VentingExterior

Sound Max Speed Sones7.9

Controls

Control LocationHidden

Control TypeManual

Dimensions

Carton Depth33.5"

Carton Height21.0"

Carton Width35.0"

Depth20.0"

Gross Weight93.0 lbs.

Height28.88"

Width30.0"
