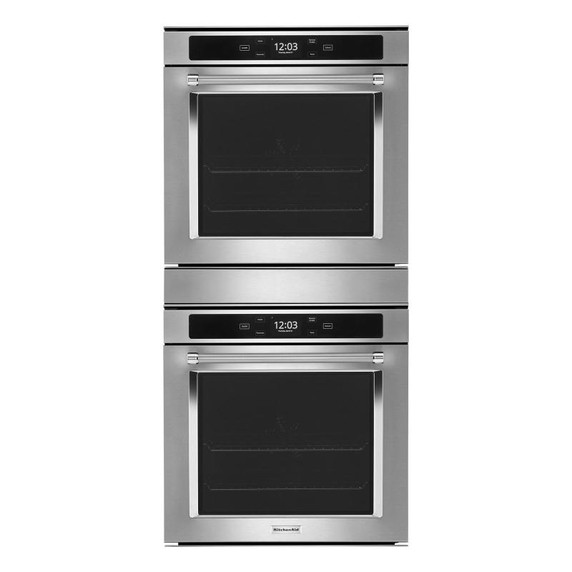

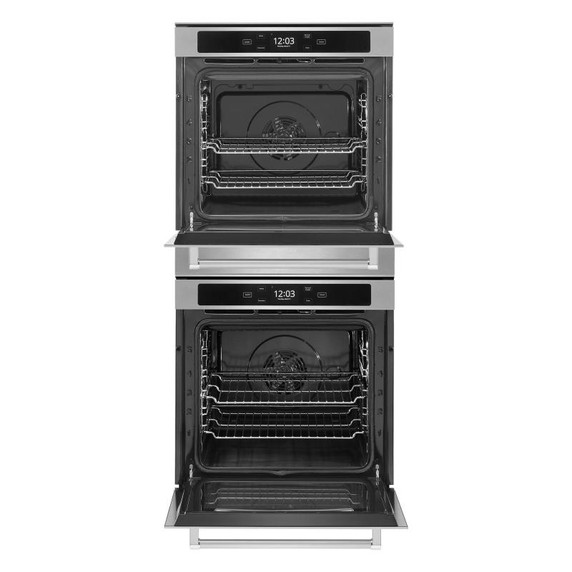

Kitchenaid® 24" Smart Double Wall Oven with True Convection KODC504PPS
True Convectionuses a hidden heating element and fan to circulate hot air throughout the entire oven while baking or roasting. This provides consistent temperatures for delicious cookies and pastries; juicy, well-browned roasts; and flavorful caramelized vegetables.
Smart Appliancegives you control of your oven in or out of the kitchen. Remotely monitor and control this oven with the KitchenAid™ App* or with simple voice commands through your Google Assistant or an Alexa-enabled device, leaving your hands free to create.**
*Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada).
Five-Level Rack Support (Both Ovens)inside both ovens makes it easy to rearrange two oven racks, adding flexibility for a variety of cooking adventures. Sturdy ladder rack supports let you choose from five height positions.

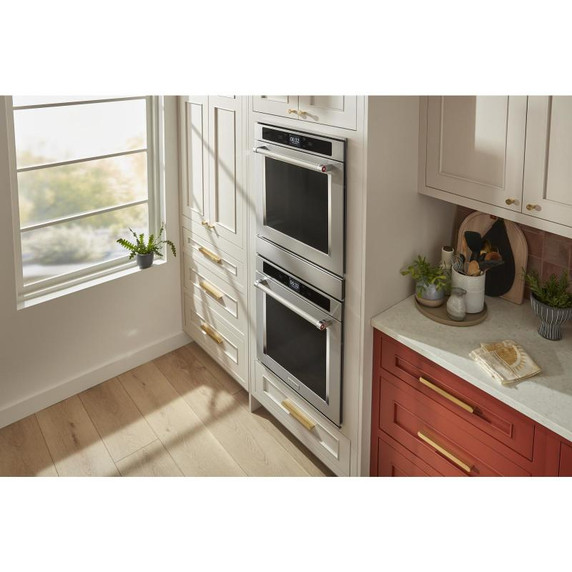

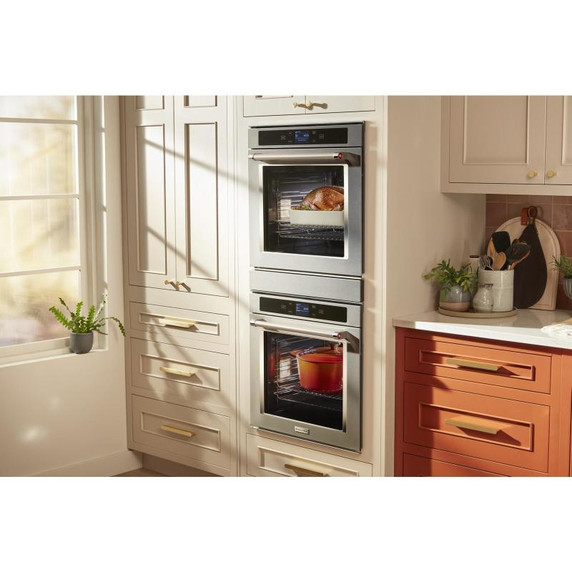

Flush Installation Optionprovides a seamless built-in look, so your style stands out, not the appliance. This option allows the oven door to sit flush with surrounding cabinet fronts when closed.
Self-Cleaning Cycle (Upper Oven Only)uses high temperatures to loosen baked-on food residue in the upper oven cavity without the need for harsh chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.
PrintShield™ Finishresists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
Touchscreen Controls"feature a 3.5"" full-color LCD display, making it easy to see and select cooking modes, set cook times and temperatures, connect your mobile device to control the oven from outside the kitchen and even download future feature updates.*
*Appliance must be set to remote enable. Wi-Fi & App required. Features subject to change. For details and privacy info, visit kitchenaid.com/connect (USA) or kitchenaid.ca/connect (Canada)."
Self-Close Doorsfeature specialized hinges that make it easy to shut the oven when your hands are full. Just give either door a nudge, and it will gently close itself.

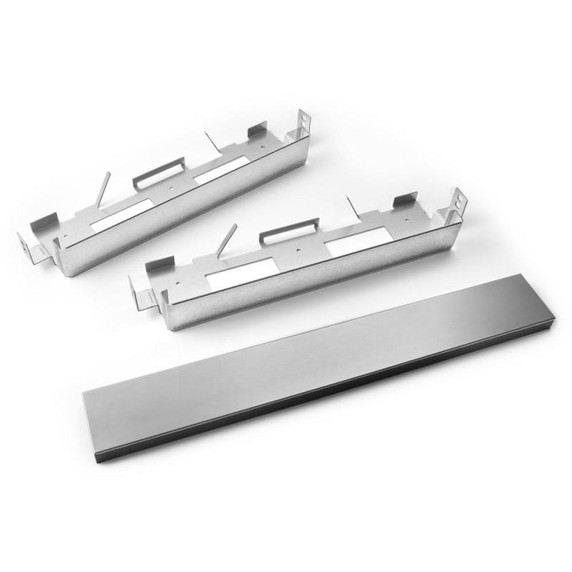

Trim Kit Includedfor easy replacement of an existing 24" KitchenAid® Wall Oven without changing your cutout.

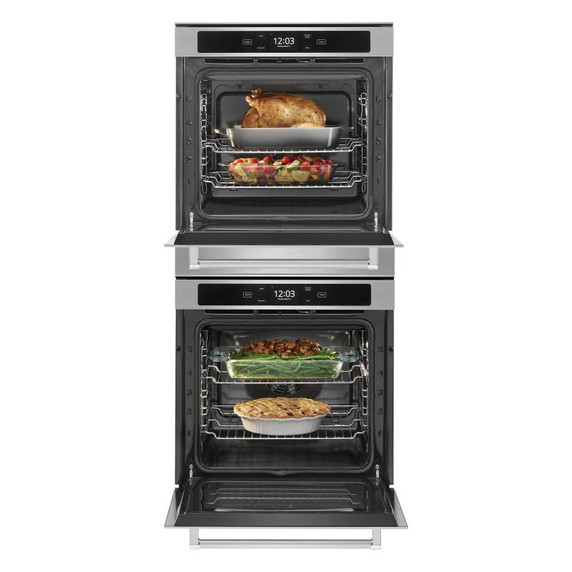

5.2 Cu. Ft. Total Capacityshared between two equal-sized ovens provides extra space and the flexibility to cook multiple dishes at different temperatures. At 2.6 cu. ft. capacity each, both ovens provide plenty of room to cook a large roast.
Controls
Control TypeElectronic
Display ColorFull Color
Electrical
Hz60
Power Cord IncludedNo
Amps40
Volts208
Configuration and Overview
Fuel TypeElectric
Compatibility
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Specifications
Country Of OriginMexico
Product To Product Pairs
Extended Service Plan ParentEW10IW1Y, EW10IW2Y, EW10IW4Y
Features
Language ConversionEnglish/French
Power On Indicator LightYes
Oven SelectionsAuto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Full Meal Cook; Keep Warm/Warm Hold; Language Conversion; Proofing; Start Time; Stop Time; Timer
Certifications
ULYes
CULYes
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Oven ConfigurationDouble Oven
Description
Size In24
Details
Hidden Bake ElementYes
Interior ColorGrey
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Bake Elements1
Number Of Broil Elements1
Light TypeHalogen
Lower Oven Number Of Oven Lights2
Upper Oven Number Of Oven Lights2
Number Of Lower Oven Racks2
Number Of Upper Oven Racks2
Bake Element Power1150W
Broiler Element Power2045W
Convection FunctionsBake; Broil
Lower Oven Interior Depth In Inches17.0
Lower Oven Interior Height In Inches14.56
Number Of Lower Rack Guides5
Number Of Upper Rack Guides5
Upper Oven Interior Depth In Inches17.0
Upper Oven Interior Height In Inches14.56
Upper Oven Interior Width In Inches18.0
Oven Cleaning TypeSelf-Clean Upper/Manual Clean Lower
Convection Element Power Watts2000
Lower Oven Interior Width In Inches18
Carton Depth27.17"
Carton Height61.42"
Carton Width25.2"

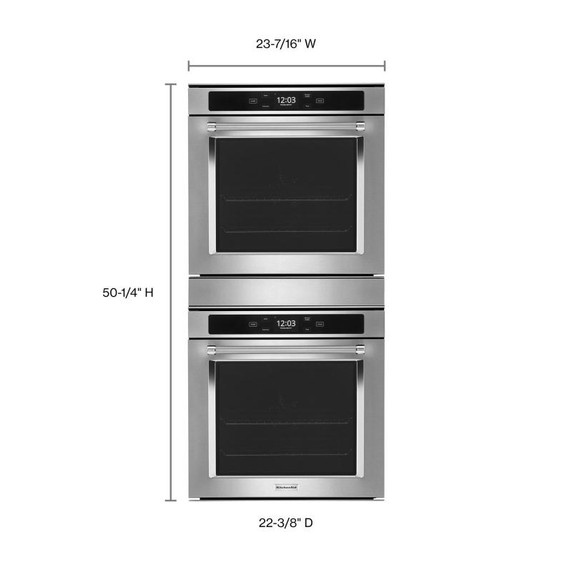

Depth Closed Excluding Handles22.5"
Depth Closed Including Handles24.75"
Depth With Door Open 90 Degree40.5"
Depth22.5"
Gross Weight178.6 lbs.
Height50.25"
Net Weight167.6 lbs.
Width23.44"
Cutout Depth23.25"
Cutout Height49.75"
Cutout Width22.63"
Capacity FT3 (cubic feet)5.8
