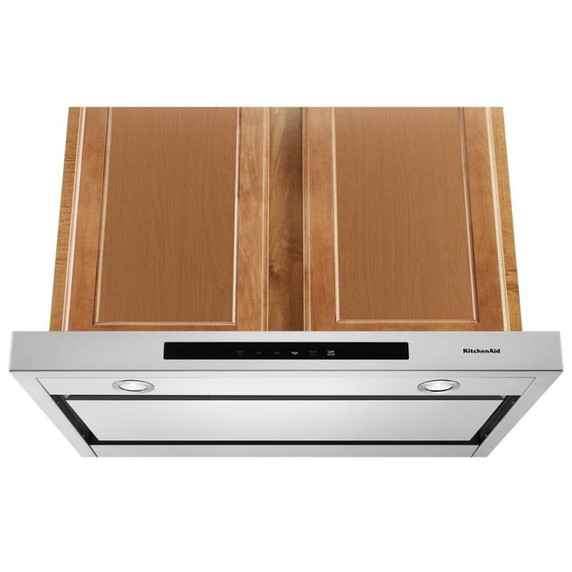

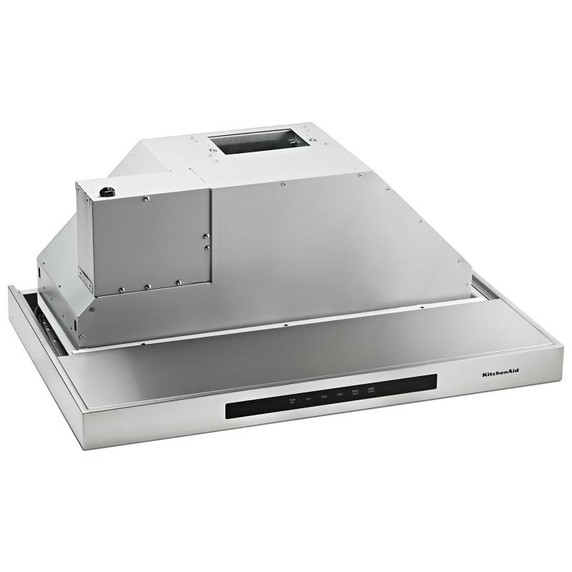

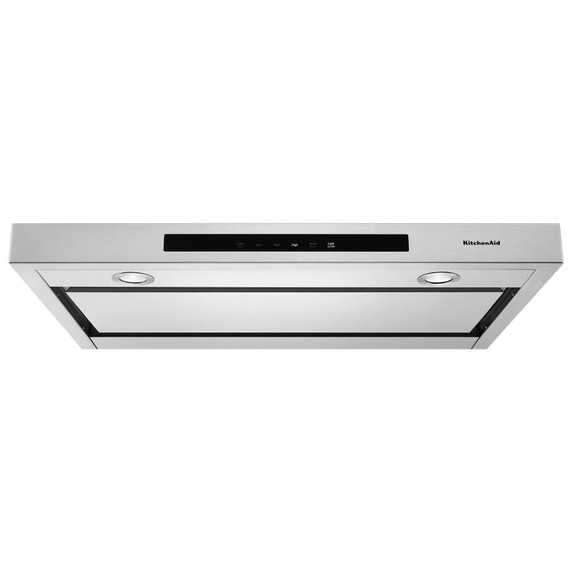

Kitchenaid® 30" Low Profile Under-Cabinet Ventilation Hood KVUB400GSS
Low Profile DesignAffords more space between the bottom of the hood and the cooking surface. The visible portion of the hood extends just 2-3/8" below the cabinetry above it, enabling ventilation even in limited spaces and offering more room for creativity.
400 CFM Motor Class Ventilation SystemHelps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
Perimeter VentilationIncreases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
Auto Speed SettingTakes the guesswork out of protecting cabinets from steam, grease, and moisture by automatically adjusting fan speed to ventilation needs depending on the heat being produced.
Automatic Turn OnProvides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
3-Speed Electronic Touch Control with Boost Function (10 Min.)Provides electronic operation with visual feedback on settings and selections. Enhances performance when using high-temperature cooking techniques by providing a timed, short burst of high-speed ventilation to effectively filter steam, grease, and odors from the air.
Two LED Task Lights with Night Light SettingHelps you fully utilize the extra cooktop workspace afforded by the hood's Low Profile Design. Brilliant dual LEDs let you keep a sharp eye on the back burner, and provide a convenient Night Light low setting.
Removable FiltersHelp capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
65,000 BTU RatingPairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
Electrical
Volts120
Hz60
Amps15
Certifications
ULYes
Energy Star QualifiedNo
Controls
Control TypeElectronic
Control LocationFront
Description
Size In30
Hood TypeUnder-the-Cabinet
Specifications
Country Of OriginMexico
Optional AccessoriesW10272068, W10490330
Extended Service Plan ParentEW04IW1Y, EW04IW4Y, EW04IW2Y
Product To Product PairsKFGD500EBS, YKSEG700EBS, KCGS550ESS, KFGG500EWH, KCES550HBL, KCES950KSS, KFGG500ESS, YKSDB900ESS, KSGG700EBS, KFGG500EBS, YKSEG700ESS, KCGS350ESS, KCES950KBL, YKFED500ESS, KCGS950ESS, YKFEG500EWH, KCIG550JBL, YKSEB900EWH, KFGD500ESS, KSGB900ESS, KFDD500ESS, YKFEG500EBS, KCES550HSS, KSGG700ESS, YKSEB900ESS, KCIG550JSS, YKFEG500ESS
Features
Night LightYes
Task Light TypeLED
Task LightingYes
Auto OnYes
Night Light TypeLED
Ventilation System
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
FiltersGrease Filters
VentingExterior or Recirculating
Auto FunctionYes
Exhaust Vent LocationTop
Cfm Motor Class400
Blower Motor
Carton Depth18.13"
Carton Height23.25"
Carton Width33.1"
Depth19.69"
Gross Weight48.0 lbs.
Maximum Height16.5"
Minimum Height2.5"
Width29.94"
