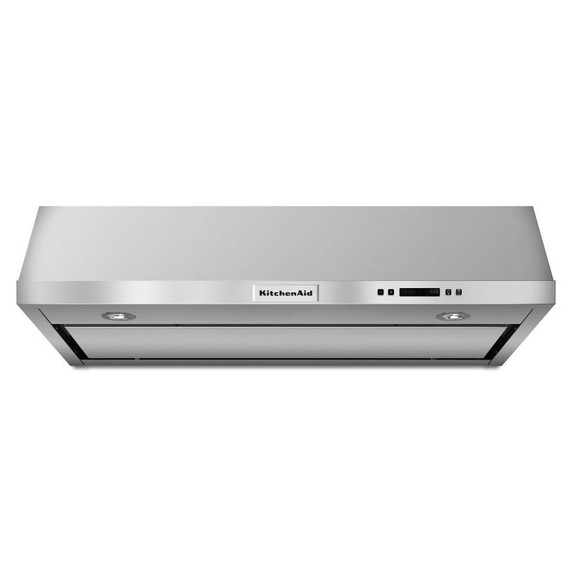

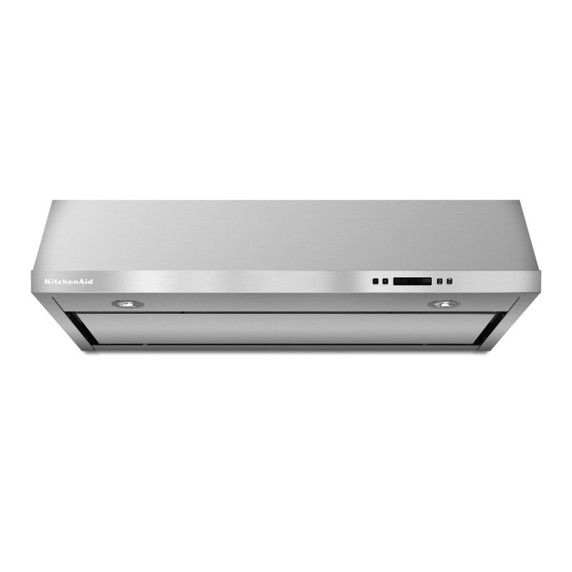

Kitchenaid® 36" Under-the-Cabinet 3-Speed Canopy Hood KVUB606DSS

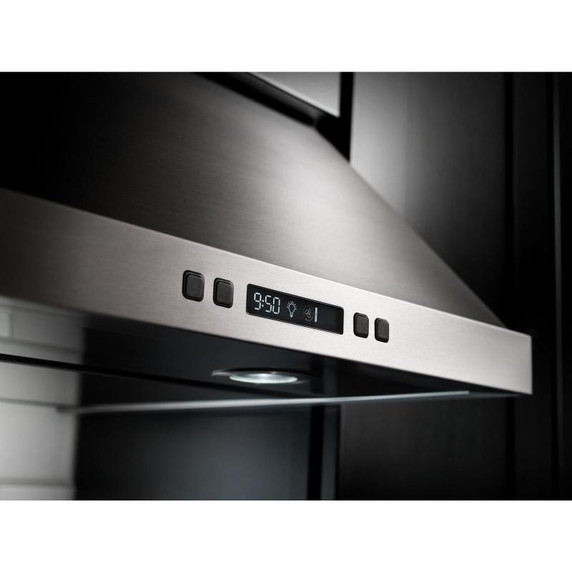

4-Speed Electronic Touch Control with LCD DisplayProvides sleek, visual confirmation of your ventilation selections, settings, and filter status.
Automatic Turn OnProvides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
Removable FiltersHelp capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.

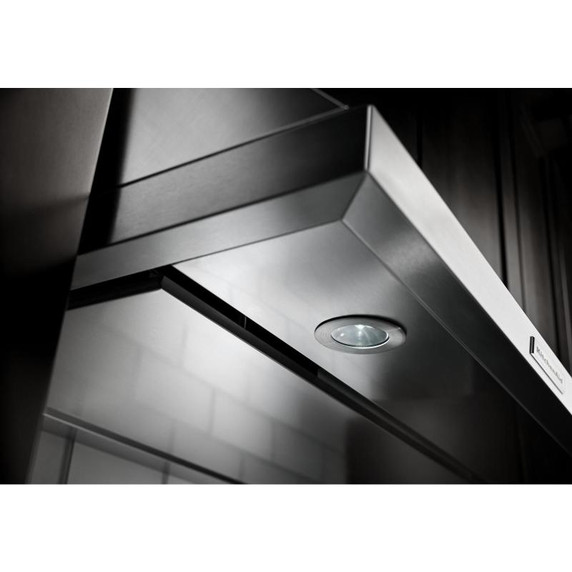

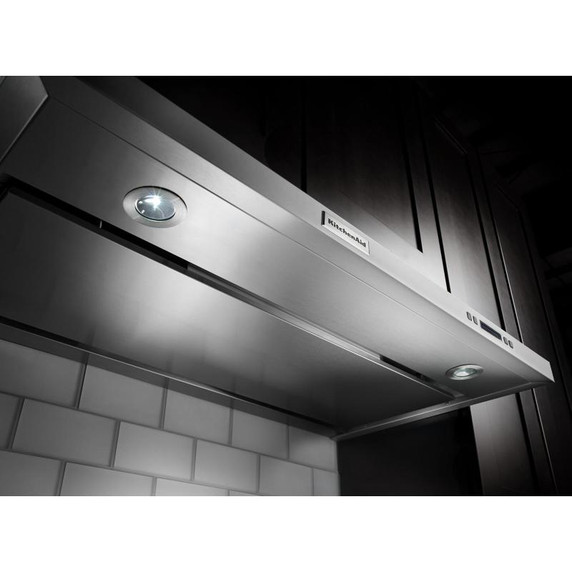

Two LED Task LightsIlluminate the entire cooking surface below with natural-looking light.
Perimeter VentilationIncreases ventilation system efficiency by pulling air from the edges of the hood and speeding up the movement of air at the center, allowing it to efficiently handle up to a 65K BTU total output.
Programmable Off FunctionCan be set to automatically turn off after a period of time.
Easy In-line ConversionConverts from a traditional set-up to an in-line blower installation for an even more quiet operation. Metal box purchase required.
65,000 BTU RatingPairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
585 CFMProvides powerful airflow to match the high performance of commercial-style ranges and rangetops. This hood can be installed with a 585 CFM motor (sold separately).
Electrical
Volts120
Amps15
Certifications
ULYes
Controls
Control TypeElectronic
Specifications
Country Of OriginMexico
Optional AccessoriesW10692945, W10272068, W10446915, W10490330
Extended Service Plan ParentEW06IW1Y, EW06IW4Y, EW06IW2Y
Product To Product PairsKCES956KBL, KCIG556JSS, KCES556HSS, KCES956KSS, KCGS556ESS, KCGS956ESS, KCES556HBL, KCIG556JBL
Description
Size In36
Hood TypeUnder-the-Cabinet
Ventilation System
Cfm Motor Class585
Duct DirectionVertical
Duct Outlet Size In6
Duct TypeRound
FiltersGrease Filters
VentingExterior or Recirculating
Auto FunctionYes
Sound Max Speed Sones7
Features
Night LightYes
Task Light TypeLED
Task LightingYes
Night Light Type
Carton Depth13.0"
Carton Height24.0"
Carton Width39.0"
Depth19.75"
Gross Weight44.5 lbs.
Height9.0"
Width36.0"
