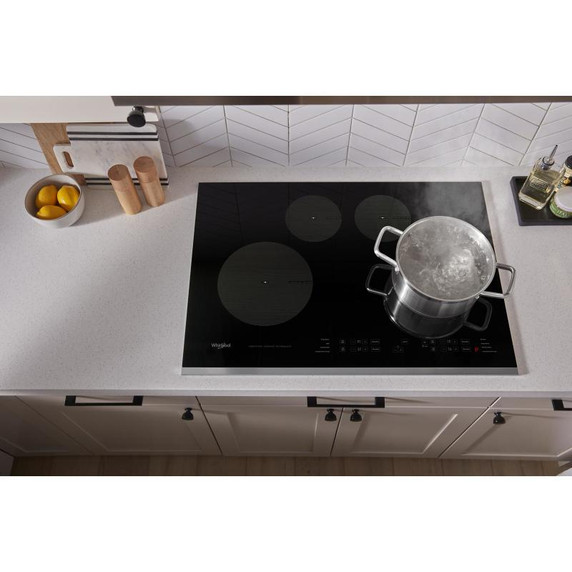

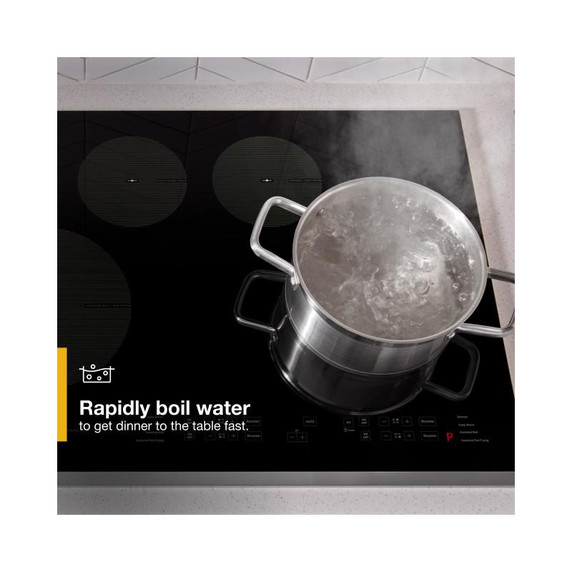

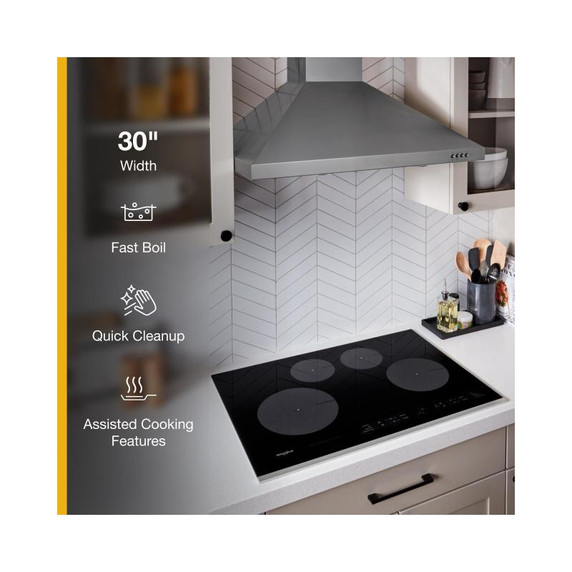

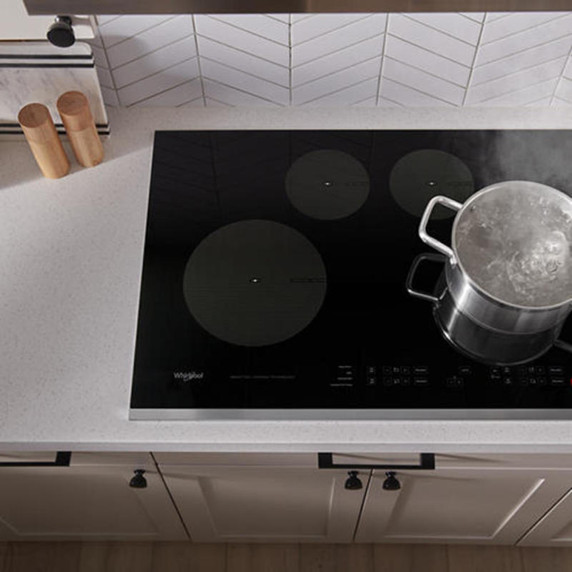

Fast BoilBoil 12 cups of water on average 25% faster on Booster to help you get dinner to the table in less time.

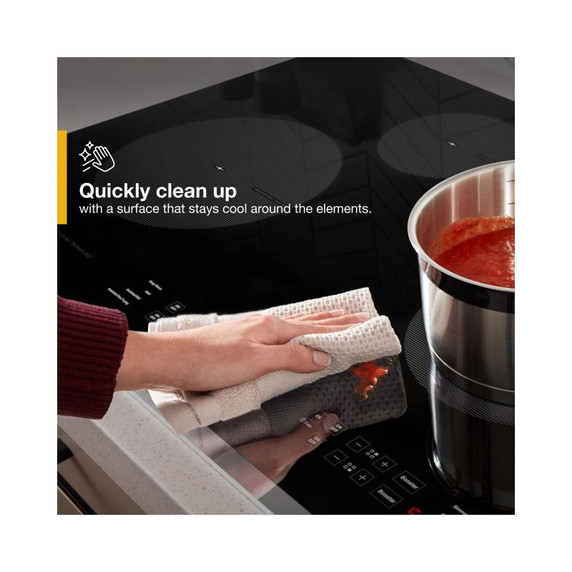

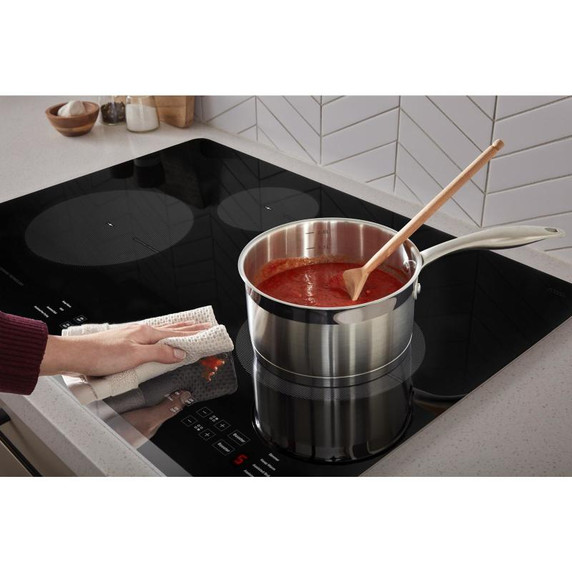

Quick CleanupInduction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.

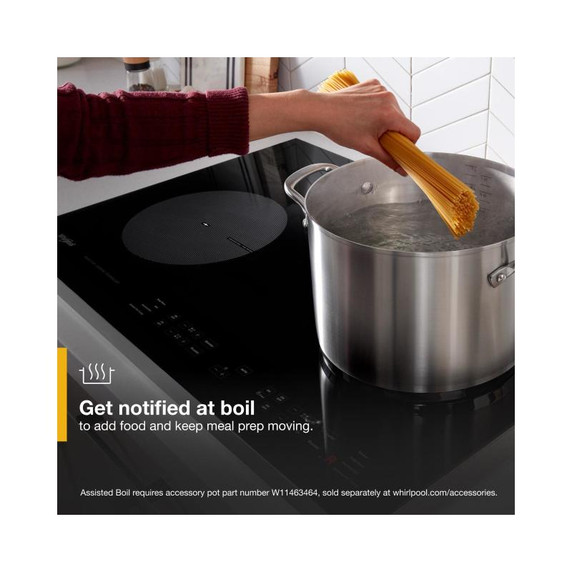

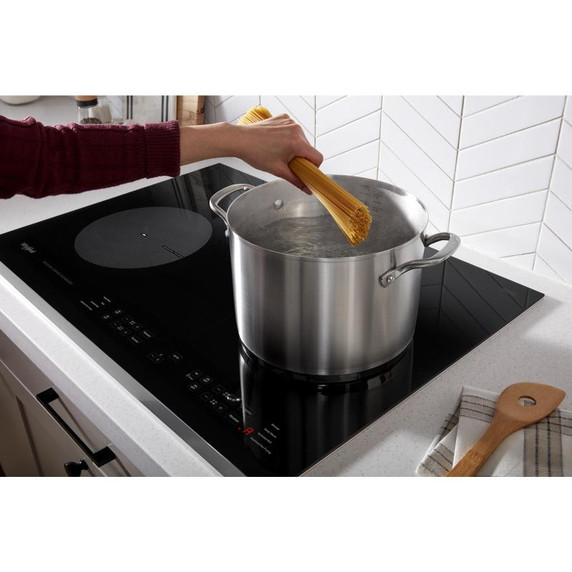

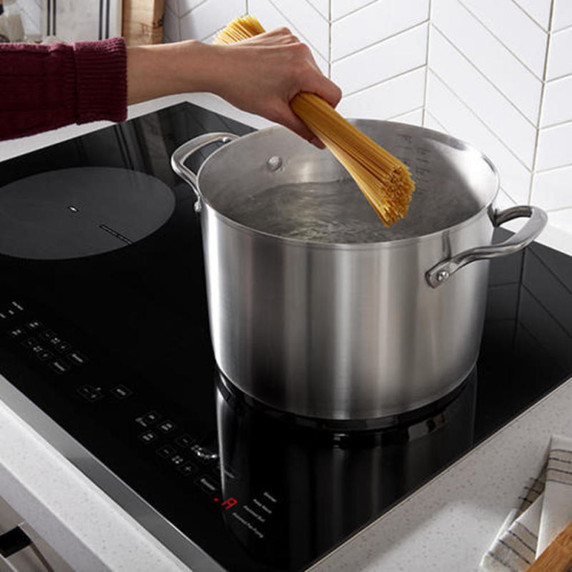

Assisted BoilThis optional assisted cooking function notifies you with a helpful tone and flashing light when boiling water reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pot, part number W11463464, sold separately.

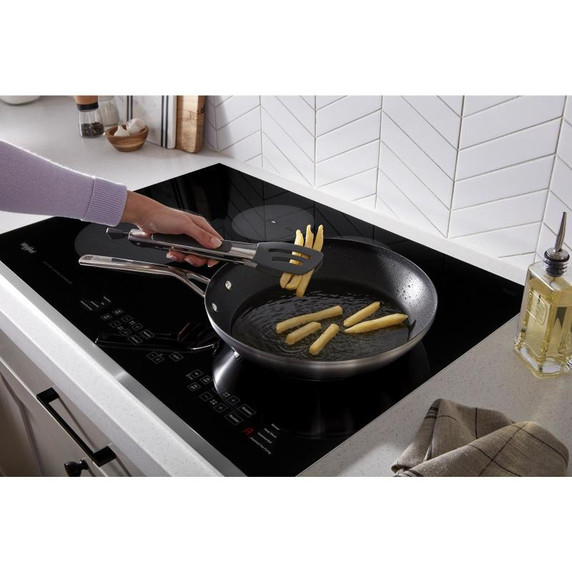

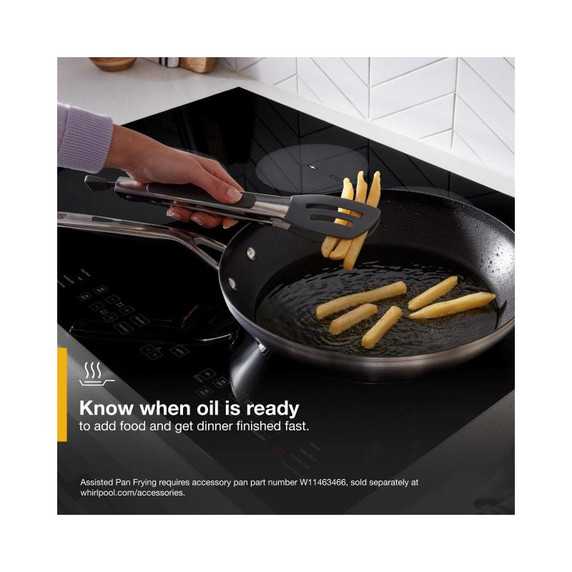

Assisted Pan FryingThis optional assisted cooking function notifies you with a helpful tone and flashing light when oil reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pan, part number W11463466, sold separately.
Keep WarmLow heat keeps food ready to serve when other dishes aren’t quite done, saving you time spent heating up food that’s gotten cold.
Compatible CutoutInstall your new induction cooktop into the same size cutout as our electric cooktops, making the switch nearly effortless.
Control Lock ModeDisable the control panel to avoid unintended use and make cleanup easy.

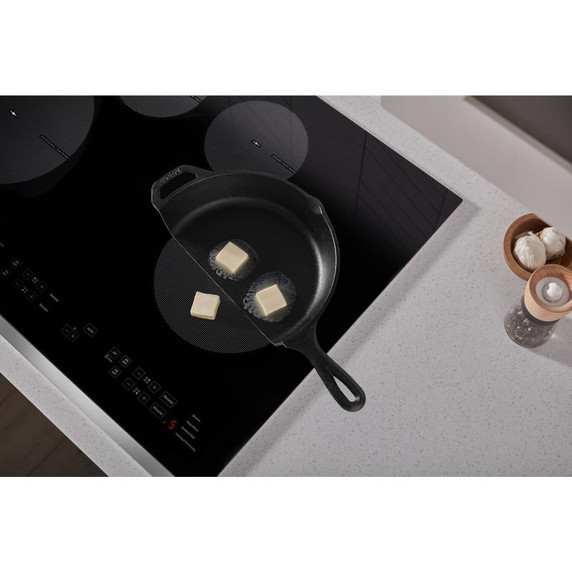

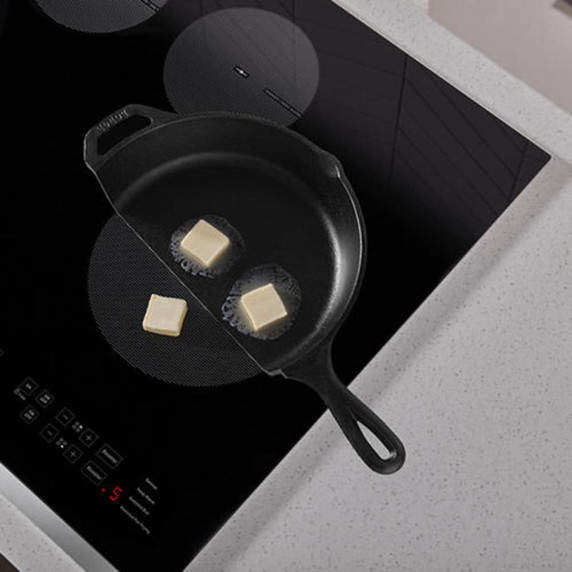

MeltPrevent burning delicate foods like chocolate or butter with a Melt setting that lets you focus on other tasks.
SimmerMaintain the right temperature for simmering soups and stews so you can let dishes cook while taking on the next step in meal prep.
Optional Flush InstallationChoose Optional Flush Installation for a flush fit and seamless look. With flush installation the cooktop is placed into the countertop, rather than on top of the countertop for a more built-in appearance.
Pan DetectionEasily see which element is activated with Pan Detection. A flashing symbol alerts you when a pan is removed or replaced on an active element.
30 Amp InstallationProperly install with a 30 amp hookup.

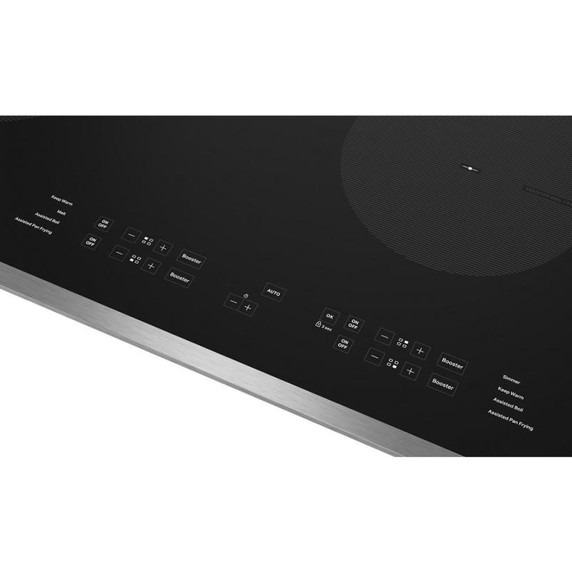

Kitchen TimerKeep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the controls.

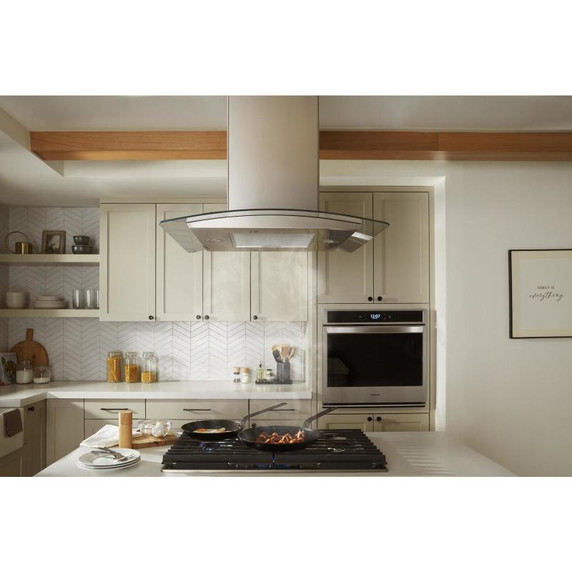

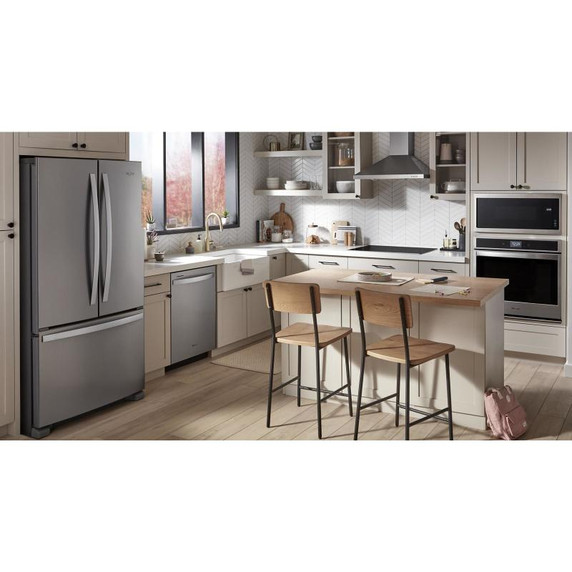

Wall Oven CompatibleInstall this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.aInstall this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Control TypeManual
Control LocationFront
Hz60

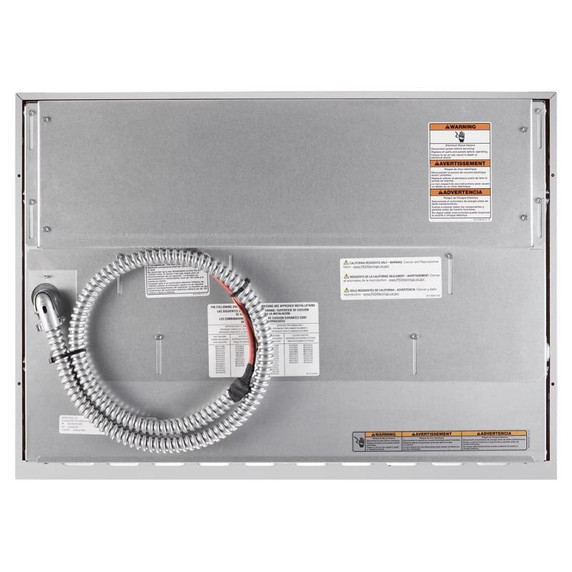

Power Cord IncludedYes
Volts240
Amps30
208v CompatibleYes
Watts7
Fuel TypeElectric
Country Of OriginUSA
Extended Service Plan ParentEW06IW4Y, EW06IW1Y, EW06IW2Y
Optional AccessoriesW11463466, W10355051B, W11463464
Product To Product PairsUXT5530AAS, WVU17UC0JS, WVW53UC0LS, UVL5430JSS, WVW51UC0LS, WVU57UC0FS, UXT4130ADS, UXT5230BDS, WVU17UC0JW, WVW73UC0LS, WVU37UC0FS, WVW57UC0FS, WVW53UC0HV
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Downdraft VentNo
Installs Over Built In OvenYes
Automatic Pan DetectionYes
Automatic Pan Size AdjustmentYes
Digital DisplayYes
Power BoostYes
ULYes
ADA CompliantYes
Size In30
Cooktop TypeTraditional
Combinations With OvenWOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS72EC0; WOS72EC7
Cooktop ConfigurationAll Burners
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Cooktop Element StyleInduction
Left Front Element Burner Power2100W/3000WBoost
Left Front Element Burner TypeStandard
Left Rear Element Burner Power1200W/1600WBoost
Right Front Element Burner TypeStandard
Right Rear Element Burner Size8in.
Right Rear Element Burner Power1200W/1600WBoost
Right Front Element Burner Size8in.
Left Front Element Burner Size10in.
Right Front Element Burner Power2100W/3000WBoost

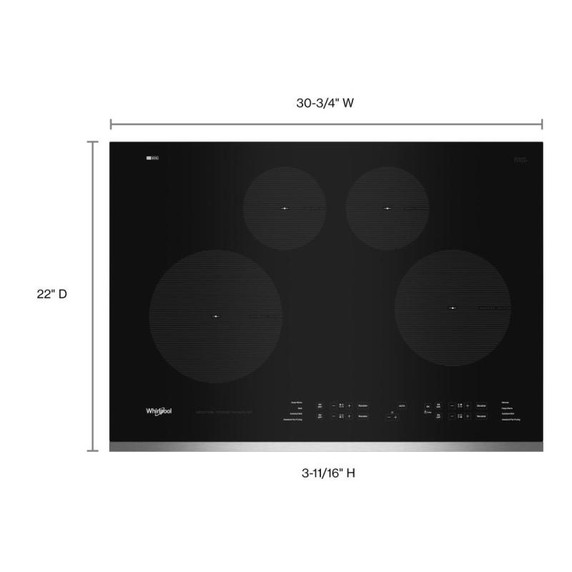

Depth21.25"
Height3.69"
Maximum Height4.0"
Net Weight46.0 lbs.
Width30.81"
Carton Depth Inch25.28
Carton Height Inch7.64
Carton Width Inch34.15
