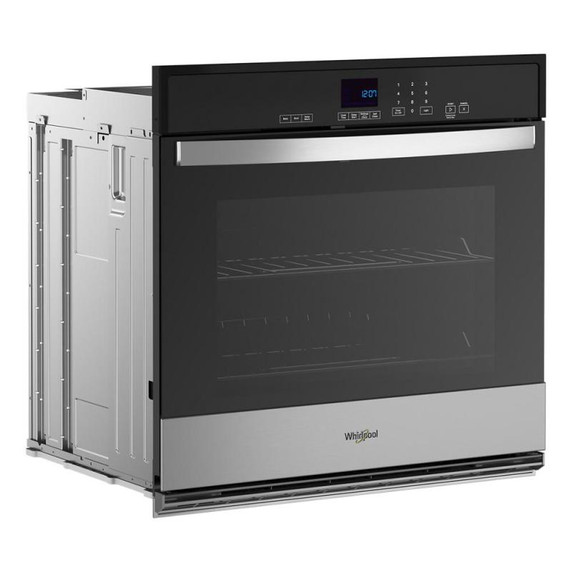

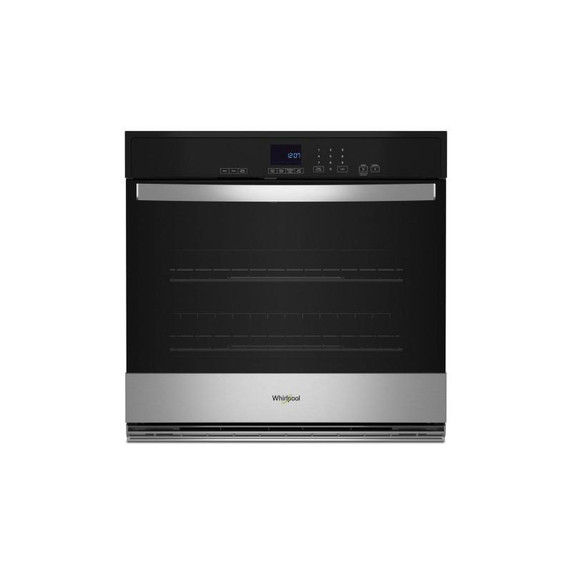

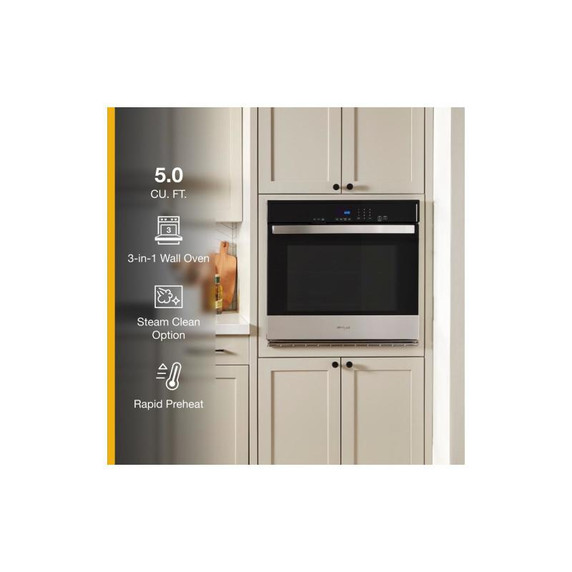

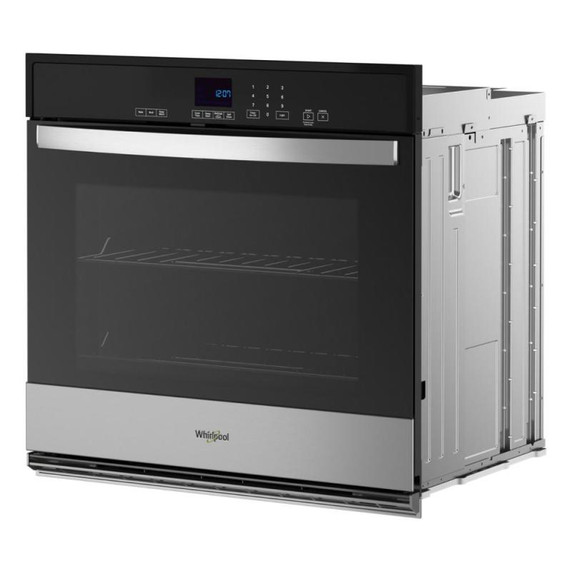

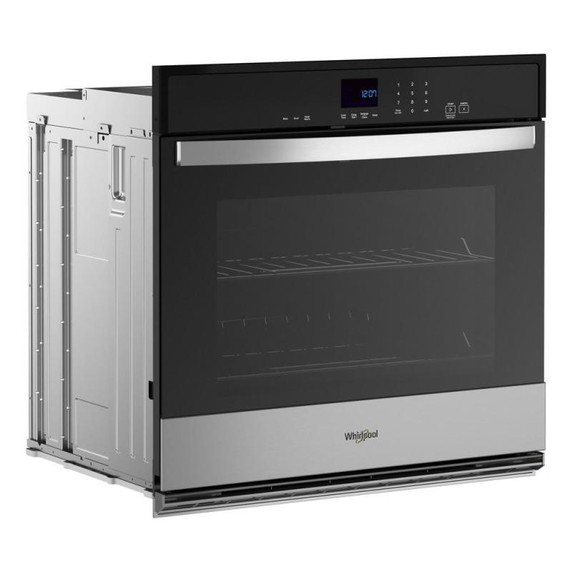

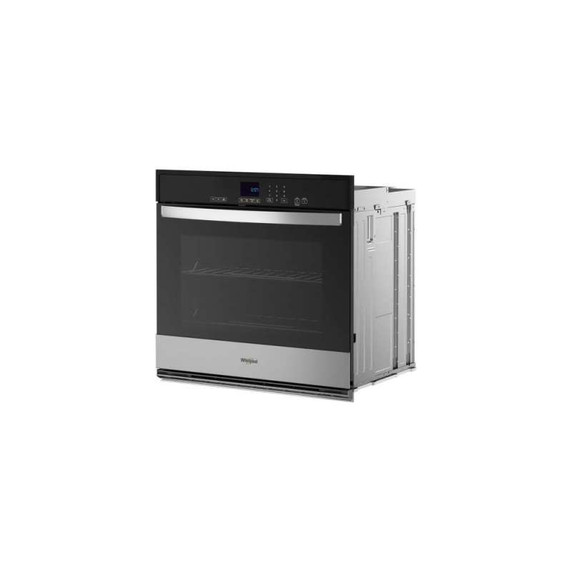

Whirlpool® 5.0 Cu. Ft. Single Self-Cleaning Wall Oven WOES3030LS

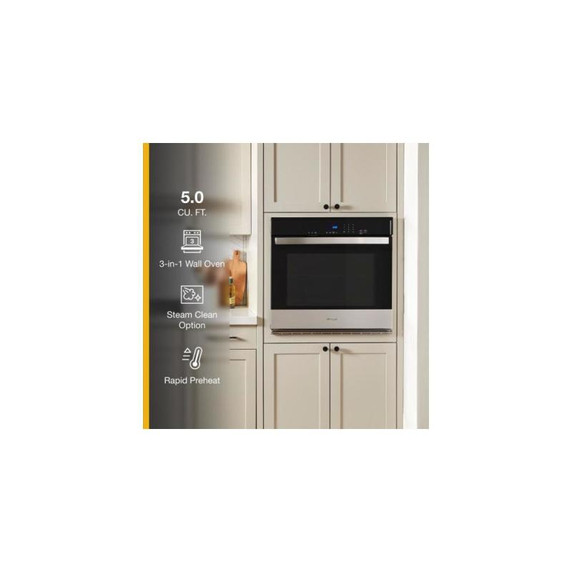

3-in-1 Wall OvenCook however you want with three cooking modes in one wall oven: Keep Warm, Broil and Bake. Get the flexibility to cook your favorite dishes by combining multiple cooking modes into one wall oven.
5.0 Cu. Ft. Oven CapacityEasily cook large meals with 5.0 Cu. Ft. Oven Capacity.
ADA CompliantThis wall oven meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

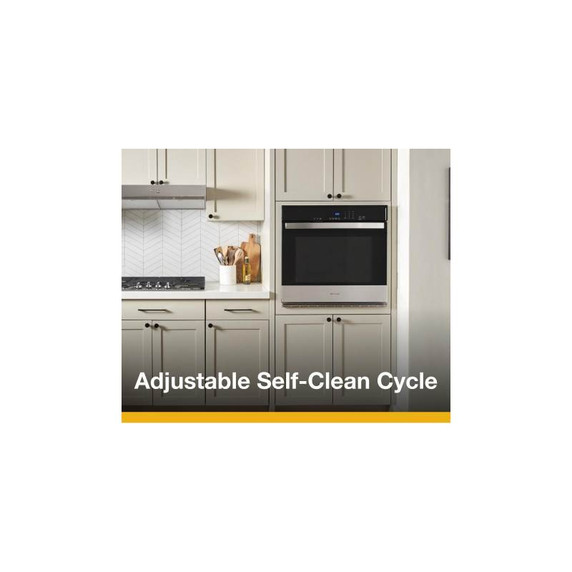

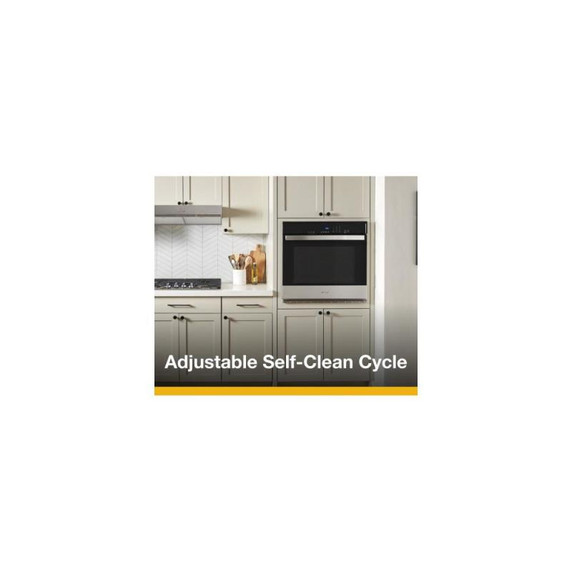

Adjustable Self-Clean CycleClean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.

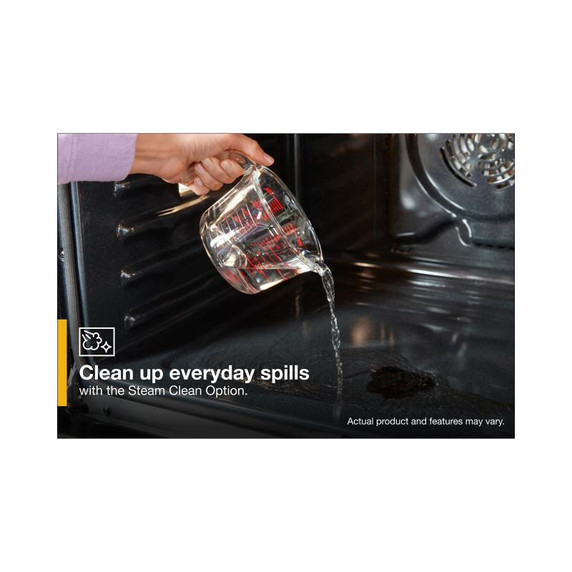

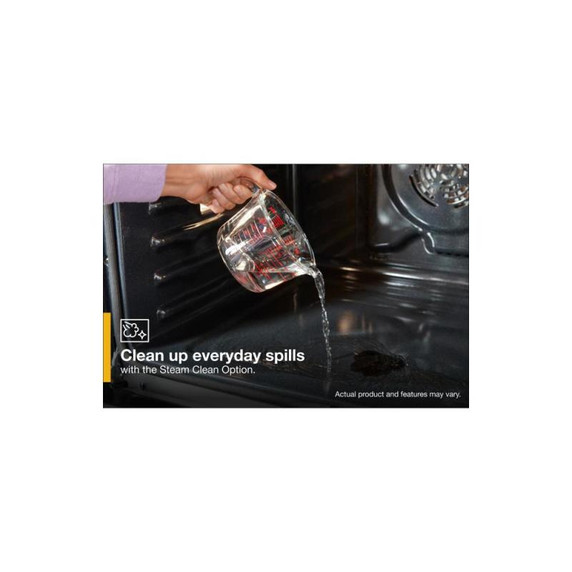

Steam Clean OptionClean up after everyday light spills using only heat and 1-1/4 cups of water—no harsh chemicals or cleaners needed. Used periodically to clean light spills on the bottom of the oven, it keeps the oven clean and reduces the need for frequent traditional high heat self-clean cycles.

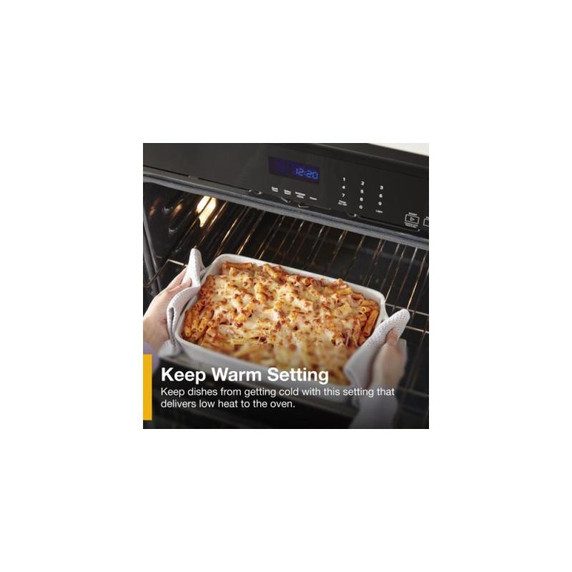

Keep Warm™ settingThis setting helps food stay warm and ready to serve even when the family is running late.

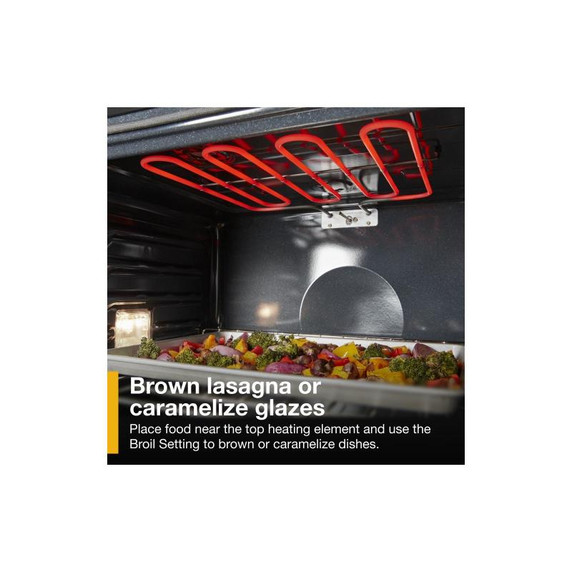

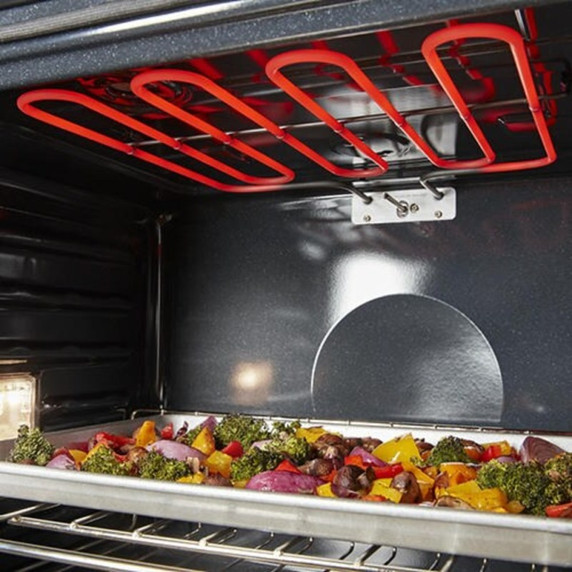

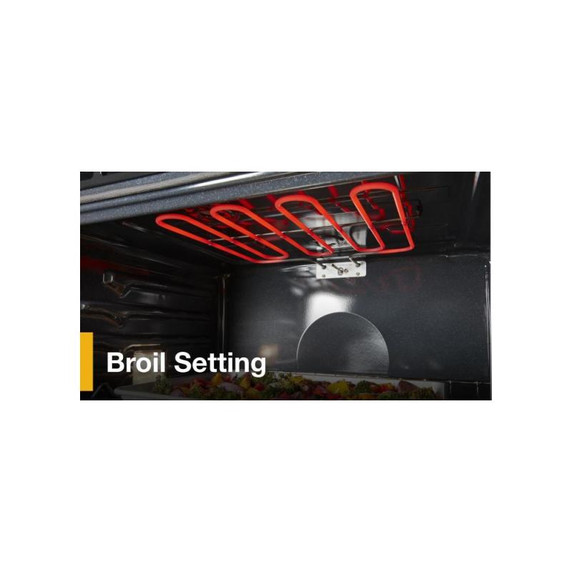

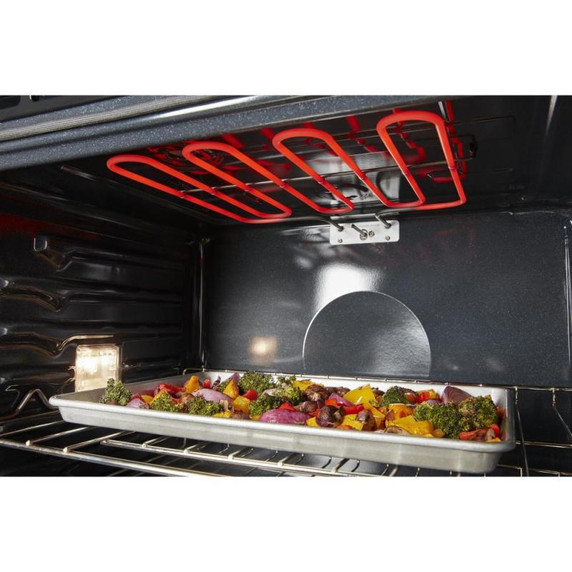

BroilWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
BakeMake your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses heat from the radiant element in the oven to cook food.

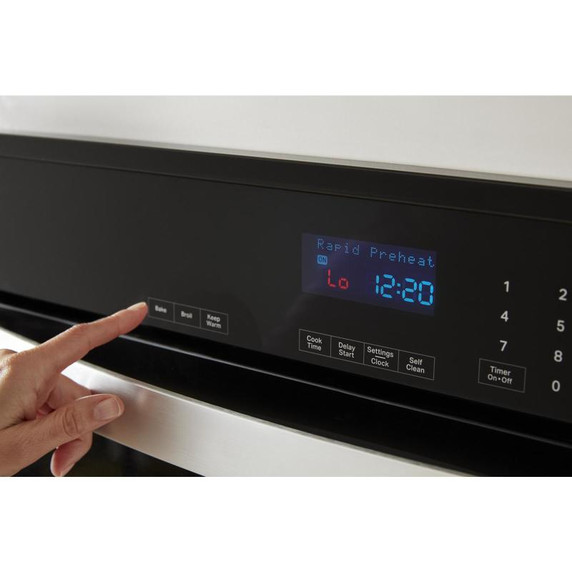

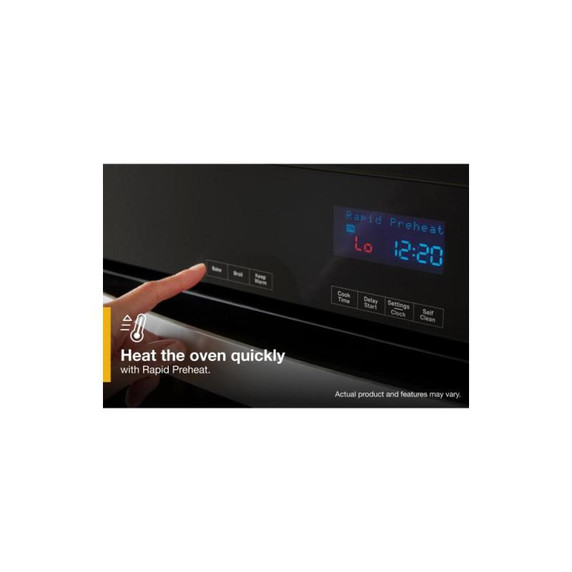

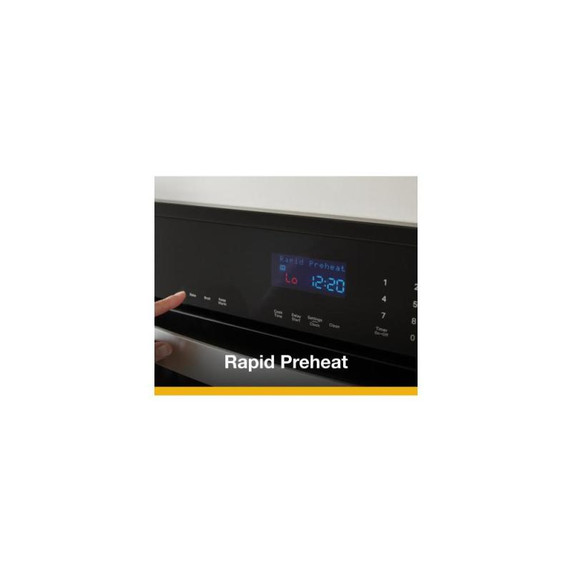

Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus two-rack without option.
Hidden bake elementThe hidden bake element is sealed under the oven floor to protect it from spills and drips.

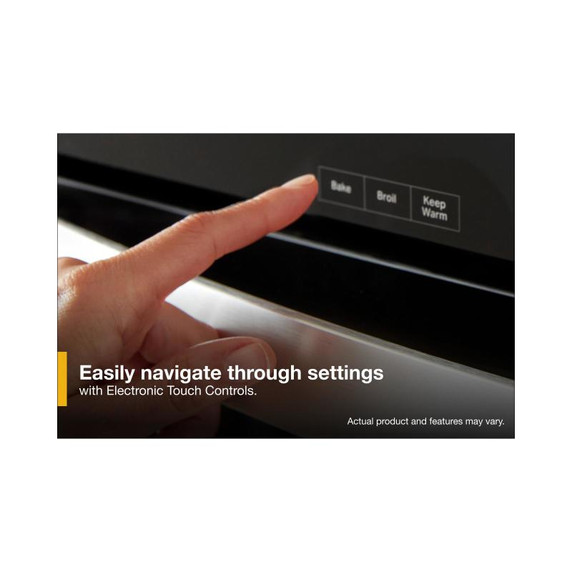

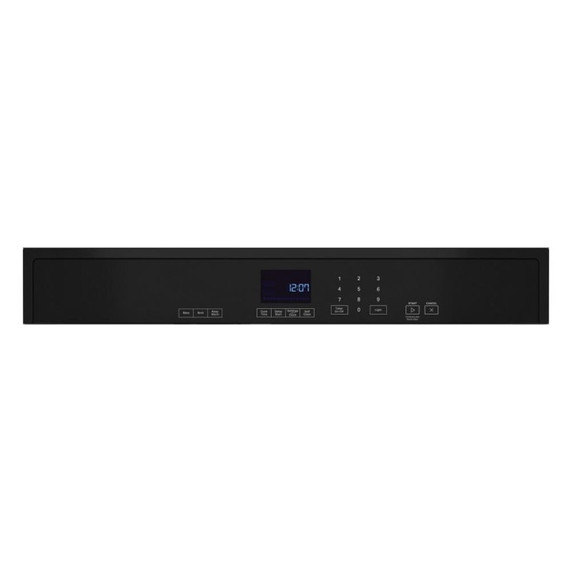

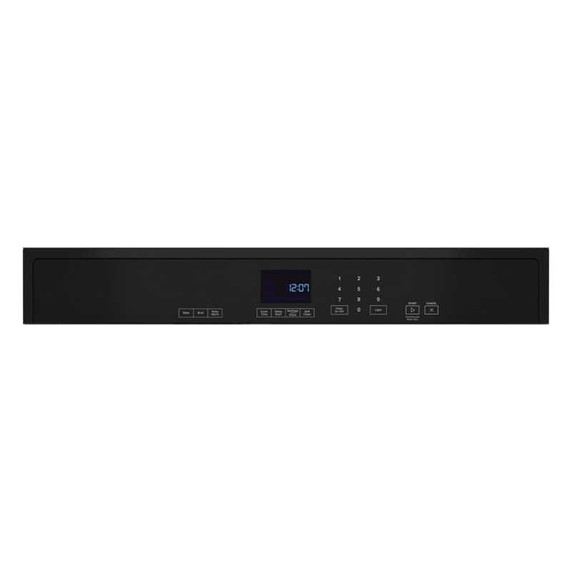

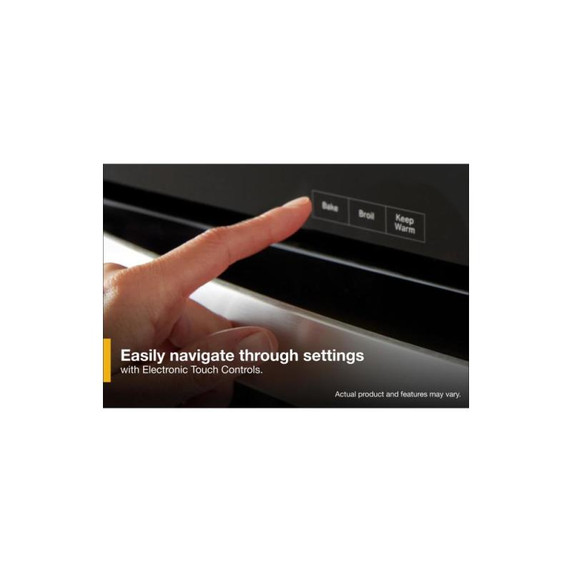

Electronic Touch ControlsNavigate through modes and options with controls that are as easy to use as they are to clean.

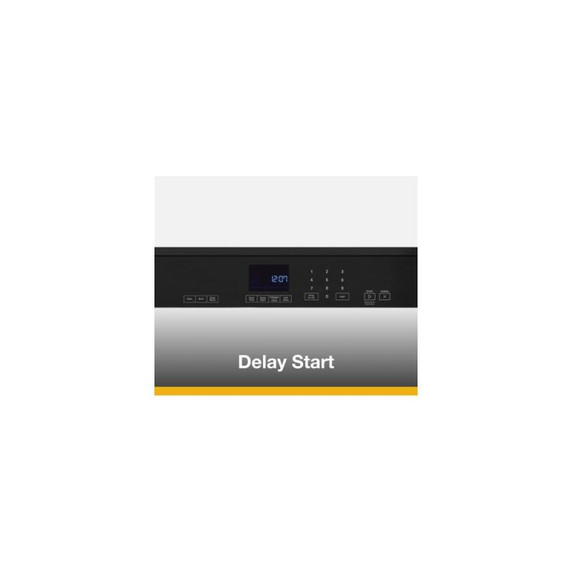

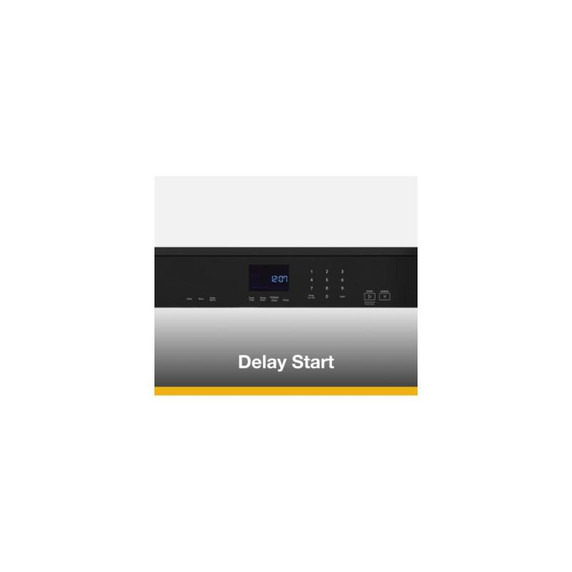

Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Control Lock modeEasily avoid unintended use by holding down the control lock button for 3 seconds to lock the refrigerator controls.

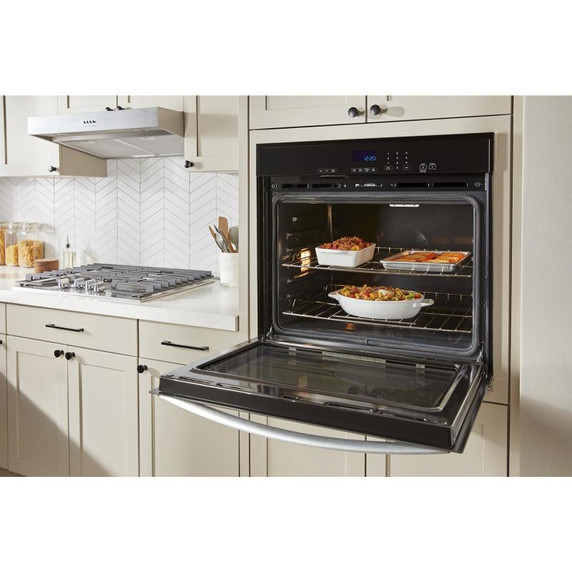

Extra-Large Oven WindowKeep an eye on your meal through the Extra-Large Oven Window.

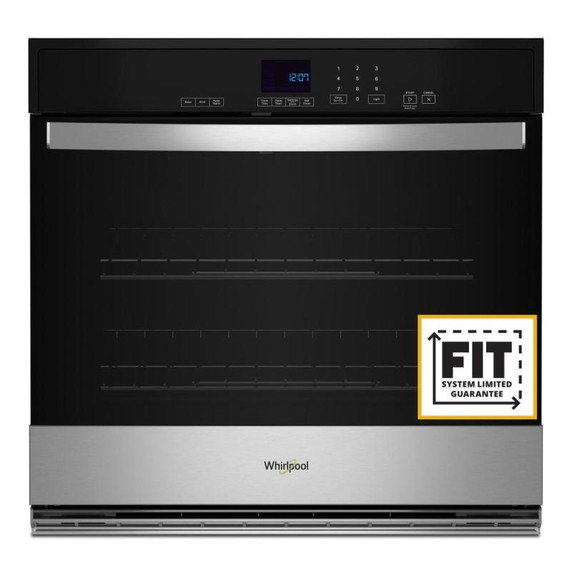

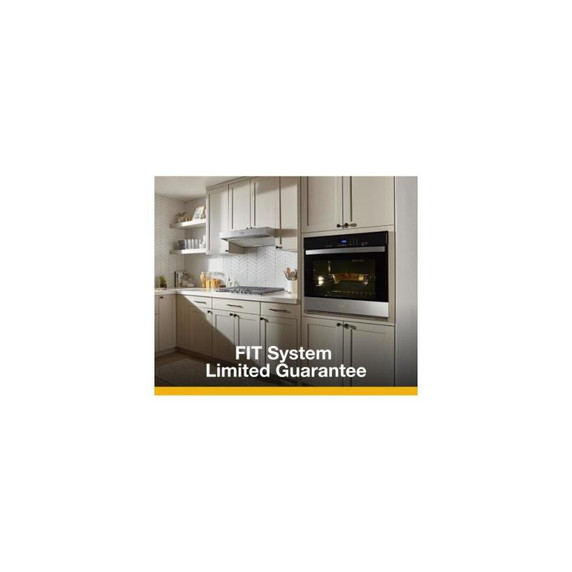

FIT System Limited GuaranteeAllows the oven to install in standard, short or tall cabinet cutouts, using flexible design elements to match the height of an existing cutout.*
*On 27" and 30" KitchenAid® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified.
An American company for over 100 yearsWhirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Specifications
Country Of OriginUSA
Sabbath ModeYes
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11570323, W11570321, W11570325, W11551866
Electrical
Hz60
Amps20
Volts240
Power Cord IncludedNo
Certifications
ULYes
CULYes
Energy Rating Kwh Year369
Controls
Control TypeElectronic
Display ColorOther
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Configuration
Oven ConfigurationSingle Oven
Details
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Interior ColorGrey
Number Of Oven Lights2

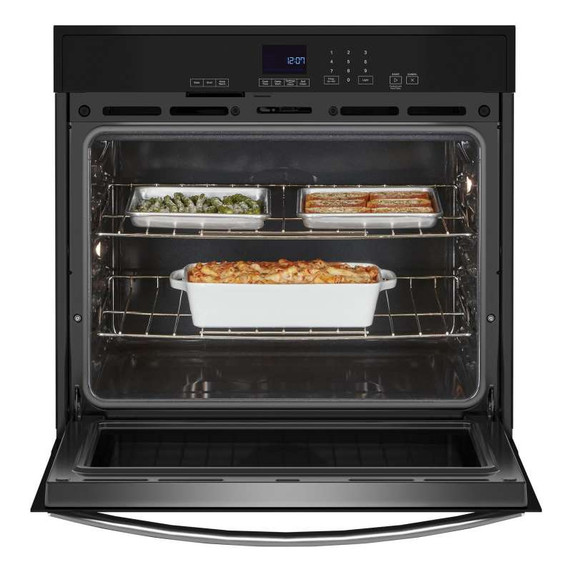

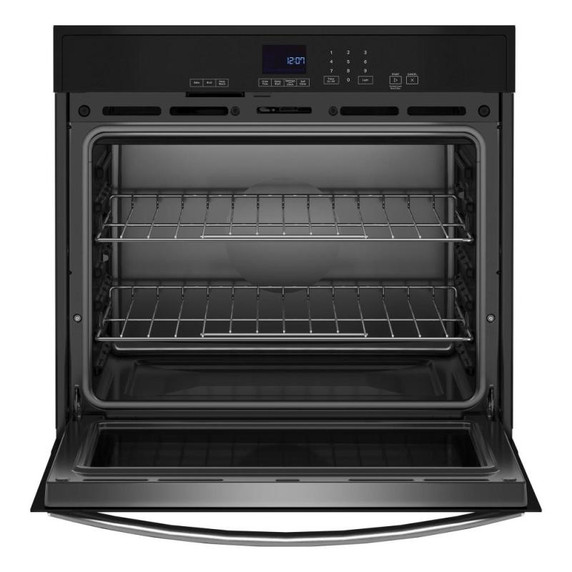

Number Of Oven Racks2
Number Of Rack Guides6
Oven Cooking SystemThermal
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Light ControlOven Light Touch Pad
Number Of Bake Elements1
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Light TypeHalogen
Bake Element Power2800W/2427W
Broiler Element Power3000W
Convection FunctionsNo
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Features
Language ConversionEnglish/French/Spanish
Power On Indicator LightYes
Oven SelectionsAuto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Rapid Preheat; Sabbath Mode; Stop Time; Timer
Compatibility
Connectivity
Energy
Annual Energy Usage Kwh369
Carton Depth31.0"
Carton Height31.0"
Carton Width35.0"

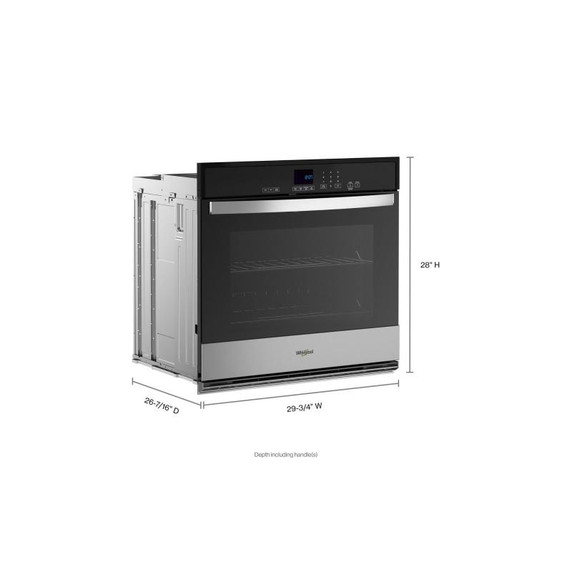

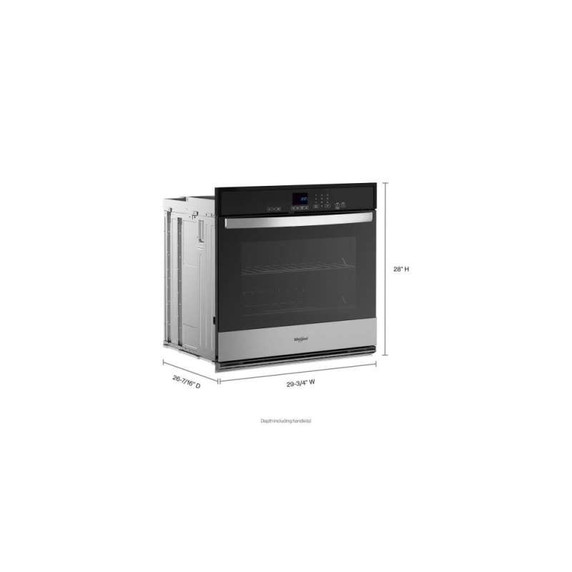

Depth Closed Excluding Handles24.44"
Depth Closed Including Handles26.44"
Depth With Door Open 90 Degree46.19"
Depth26.44"
Gross Weight142.0 lbs.
Height26.0"
Net Weight137.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height28.0"
Cutout Width28.5"
Capacity FT3 (cubic feet)5.0
